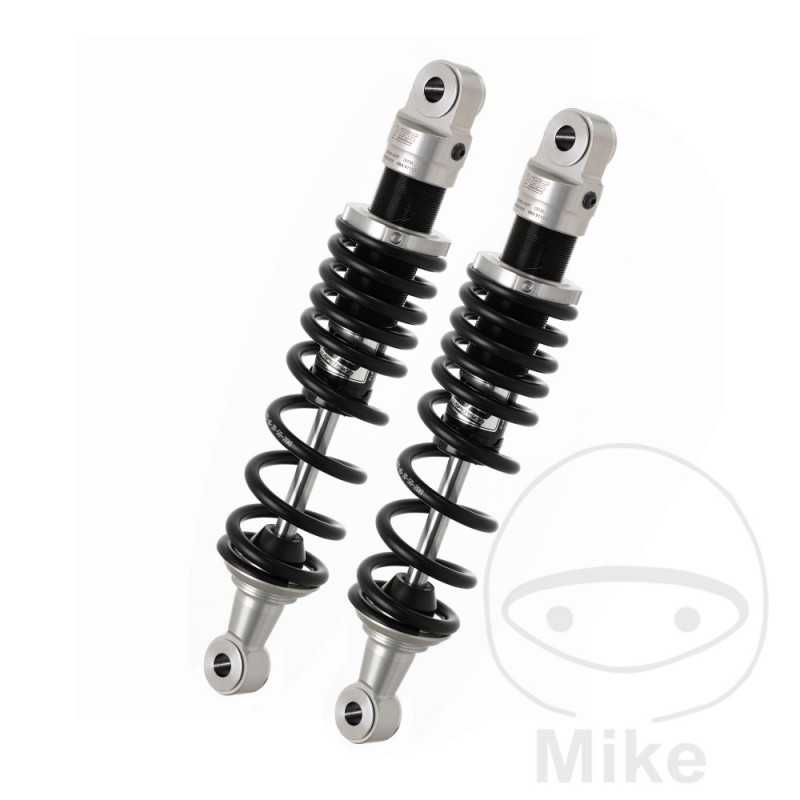

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.54.19

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a pressure screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 30-50
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FLHS 1340 Electra Glide Sport 2cil. FAL FLT Bastidores: --- 1987
Harley Davidson FLHS 1340 Electra Glide Sport 46 CV, 34 kw 2cil. FAL FLT Bastidores: --- 1990-1992
Harley Davidson FLHS 1340 Electra Glide Sport 50 CV, 37 kw 2cil. FAL FLT Bastidores: --- 1988-1989
Harley Davidson FLHS 1340 Electra Glide Sport 60 CV, 44 kw 2cil. FAL FLT Bastidores: --- 1993
Harley Davidson FLHS 1340 Electra Glide Sport 64 CV, 47 kw 2cil. FAL FLT Bastidores: --- 1990-1992
Harley Davidson FLHS 1340 Electra Glide Sport 65 CV, 47,4 kw 2cil. FAL FLT Bastidores: --- 1988-1989
Harley Davidson FLHT 1450 Electra Glide Standard 34 CV, 25 kw 2cil. DDV FL1 Bastidores: --- 2000-2003
Harley Davidson FLHT 1450 Electra Glide Standard 34 CV, 25 kw 2cil. DDV FLT Bastidores: --- 1999
Harley Davidson FLHT 1450 Electra Glide Standard 67 CV, 49 kw 2cil. DDV FL1 Bastidores: --- 2000-2003
Harley Davidson FLHT 1450 Electra Glide Standard 68 CV, 50 kw 2cil. DDV FLT Bastidores: --- 1999
Harley Davidson FLHTI 1450 EFI Electra Glide Standard 34 CV, 25 kw 2cil. FVW FL1 Bastidores: --- 2004
Harley Davidson FLHTI 1450 EFI Electra Glide Standard 71 CV, 52 kw 2cil. FVW FL1 Bastidores: --- 2004-2004
Harley Davidson FLHTI 1450 EFI Electra Glide Standard 71 CV, 52 kw 2cil. FVW FL1 Bastidores: --- 2006-2006
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 34 CV, 25 kw 2cil. GGL FXD Bastidores: --- 1996-1998
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 50 CV, 37 kw 2cil. GGL FXD Bastidores: --- 1995-1998
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 55 CV, 41 kw 2cil. GGL FXD Bastidores: --- 1995-1996
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 56 CV, 41 kw 2cil. GGL FXD Bastidores: --- 1997-1998
Harley Davidson FXDS-CON 1340 Dyna Low Rider Convertible 48 CV, 35 kw 2cil. GGL FXD Bastidores: --- 1994
Harley Davidson FXDX 1450 Dyna Super Glide Sport 34 CV, 25 kw 2cil. GJV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDX 1450 Dyna Super Glide Sport 34 CV, 25 kw 2cil. GJV FXD Bastidores: --- 1999
Harley Davidson FXDX 1450 Dyna Super Glide Sport 68 CV, 50 kw 2cil. GJV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDX 1450 Dyna Super Glide Sport 68 CV, 50 kw 2cil. GJV FXD Bastidores: --- 1999
Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport 34 CV, 25 kw 2cil. GRW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport 67 CV, 49 kw 2cil. GRW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDXT 1450 Dyna Super Glide Tour Sport 34 CV, 25 kw 2cil. GLV FD1 Bastidores: --- 2001-2003
Harley Davidson FXDXT 1450 Dyna Super Glide Tour Sport 68 CV, 50 kw 2cil. GLV FD1 Bastidores: --- 2001-2003
Harley Davidson FXLR 1340 Low Rider Custom 2cil. ELL FXR Bastidores: --- 1990-1991
Harley Davidson FXLR 1340 Low Rider Custom 46 CV, 34 kw 2cil. ELL FXR Bastidores: --- 1988-1989
Harley Davidson FXLR 1340 Low Rider Custom 48 CV, 35 kw 2cil. ELL FXR Bastidores: --- 1992-1994
Harley Davidson FXLR 1340 Low Rider Custom 58 CV, 42 kw 2cil. ELL FXR Bastidores: --- 1987-1989
