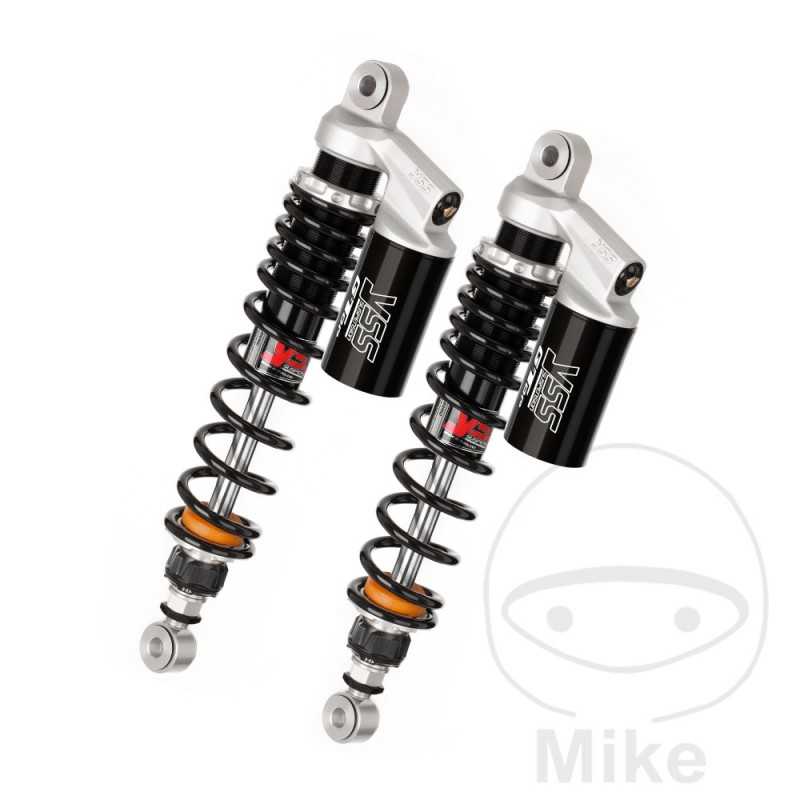

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.31.36

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) shock absorber.

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 360MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 25-45
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B52 Bastidores: 3GG-270602-- 2005
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B55 Bastidores: 3GG-278192-- 2006
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5C Bastidores: 3GG-287814-- 2007
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5F Bastidores: 3GG-291898-- 2008
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5H Bastidores: 3GG-295292-- 2009
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5K Bastidores: 3GG-298342-- 2010
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5M Bastidores: 3GG-299401-- 2011-2012
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FK7 Bastidores: 3GG-176268-- 2000
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKC Bastidores: 3GG-197900-- 2001
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKG Bastidores: 3GG-219967-- 2002
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKL Bastidores: 3GG-235833-- 2003
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKS Bastidores: 3GG-253821-- 2004
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKX Bastidores: 3GG-267798-- 2005
