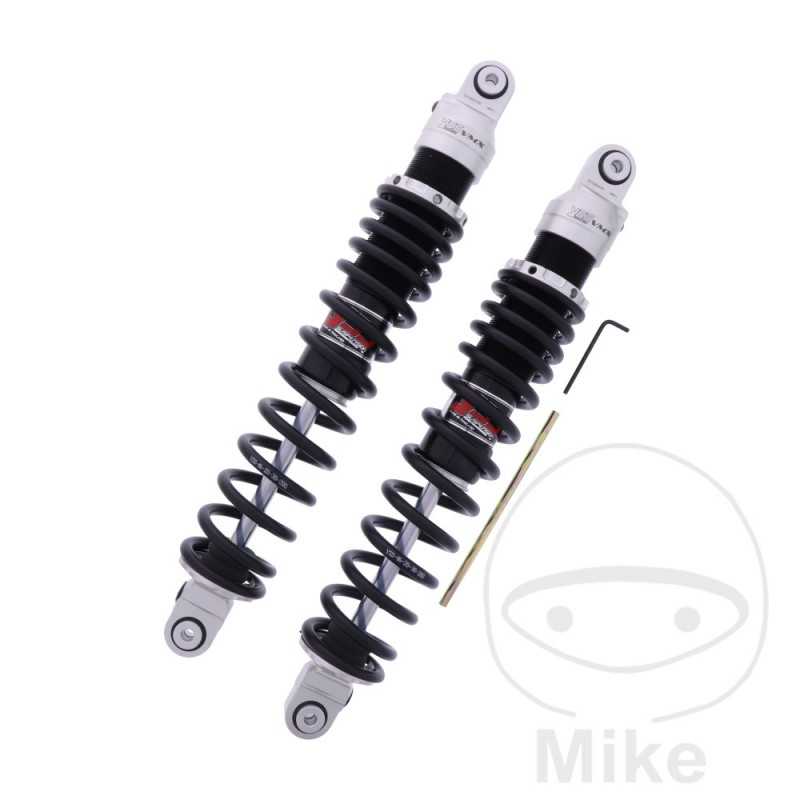

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.24.99

Milled aluminum body, spring preload and rebound (30 clicks) adjustable.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 8 MM
LENGTH: 400MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 8 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 280 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM 250 37 CV, 27 kw 1cil. RM250 C Bastidores: RM250-26783-RM250-38553 1978
Suzuki RM 250 37 CV, 27 kw 1cil. RM250 N Bastidores: RM250-38554-RM250-43877 1979
Suzuki RM 250 37 CV, 27 kw 1cil. RM250 T Bastidores: RM250-43878-RM250-100000 1980
Suzuki RM 400 1cil. RM400 C Bastidores: RM400-100001-RM400-105259 1978
Suzuki RM 400 1cil. RM400 N Bastidores: RM400-105260-RM400-109705 1979
Suzuki RM 400 1cil. RM400 T Bastidores: RM400-109706-- 1980
