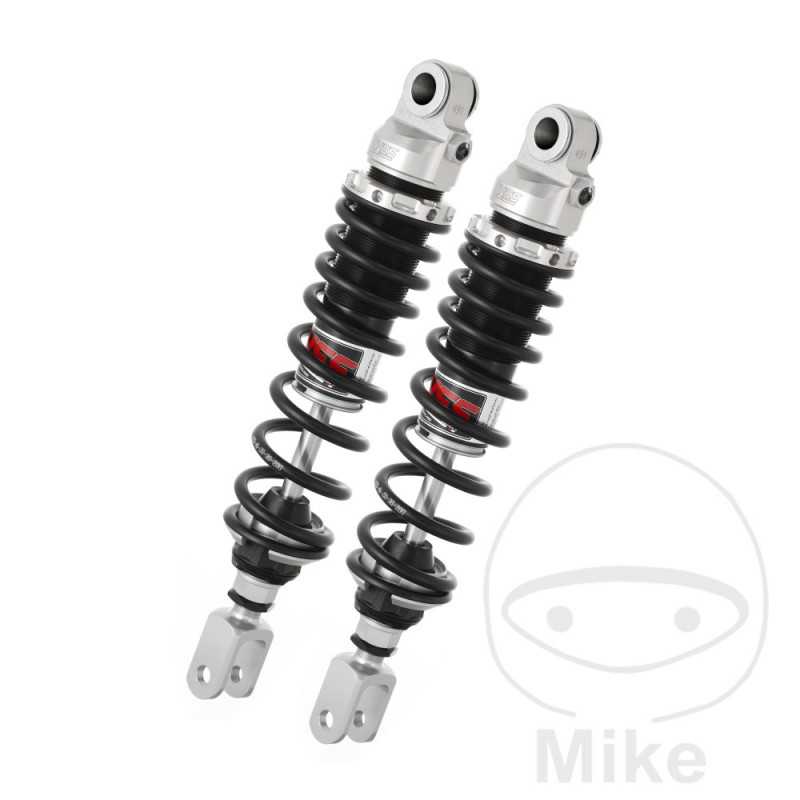

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.24.69

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 350 F Four 34 CV, 25 kw 4cil. CB350F Bastidores: CB350F-1034587-CB350F-1071219 1973-1975
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 0 Bastidores: CB350-1000001-- 1968
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 1 Bastidores: CB350-1020596-- 1969
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 2 Bastidores: CB350-2000001-CB350-2066494 1970
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 3 Bastidores: CB350-3000001-- 1971
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 4 Bastidores: CB350-4000001-- 1972
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 5 Bastidores: CB350-5000001-- 1973
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 0 Bastidores: CB400F-1000001-- 1974-1975
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 1 Bastidores: CB400F-2000001-- 1976
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 2 Bastidores: CB400F-2100001-- 1977
Honda CB 500 K Four 48 CV, 35 kw 4cil. CB500 0 Bastidores: CB500-1011543-CB500-1099999 1971
Honda CB 500 K Four 48 CV, 35 kw 4cil. CB500 1 Bastidores: CB500-2004899-CB500-2099999 1972-1977
Honda CB 550 F Supersport 50 CV, 37 kw 4cil. CB550F 1 Bastidores: CB550F-1015400-CB550F-1027819 1976
Honda CB 550 F Supersport 50 CV, 37 kw 4cil. CB550F 2 Bastidores: CB550F-2104674-CB550F-2199999 1977-1978
Honda CB 550 K Four 50 CV, 37 kw 4cil. CB550K 3 Bastidores: CB550K-2011718-CB550K-2026474 1977-1978
Honda CB 750 F Supersport 67 CV, 49 kw 4cil. CB750F 1 Bastidores: CB750F-1022152-CB750F-1040766 1976
Honda CB 750 F Supersport 73 CV, 54 kw 4cil. CB750G 2 Bastidores: CB750G-1002412-CB750G-1014194 1977-1978
Honda CB 750 K Four 63 CV, 46 kw 4cil. CB750 6 Bastidores: CB750-2550437-CB750-2586393 1976
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 0 Bastidores: CB750-1005084-CB750-1099999 1969-1970
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 1 Bastidores: CB750-1053409-CB750-1199999 1970-1971
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 2 Bastidores: CB750-2005737-CB750-2199999 1972-1975
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750K 7 Bastidores: CB750K-2719935-CB750K-2799999 1977-1978
