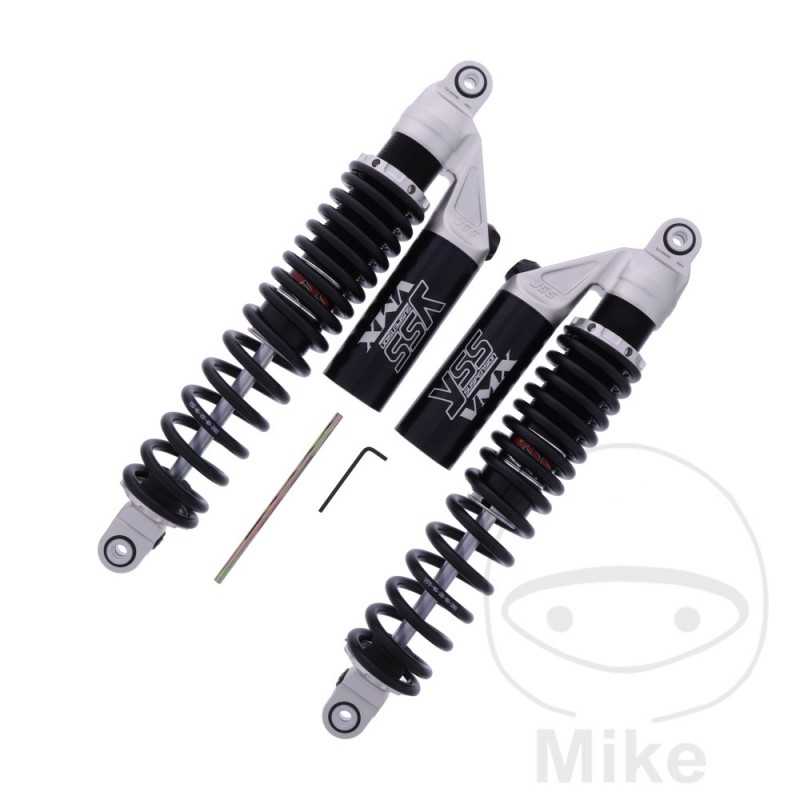

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.24.67

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) shock absorber.

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 400MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 20-40
SPRING LENGTH: 280 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 B Bastidores: PE250-10001-PE250-15664 1977
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 C Bastidores: PE250-15665-PE250-22662 1978
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 N Bastidores: PE250-22663-- 1979
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 T Bastidores: PE250-200030-PE250-204150 1980
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 X Bastidores: PE250-204151-- 1981
Suzuki PE 250 38,5 CV, 28,5 kw 1cil. PJ11A Z Bastidores: PJ11A-2100001-- 1982
Suzuki PE 400 1cil. PE400 T Bastidores: PE400-300001-PE400-303646 1980
Suzuki PE 400 1cil. PE400 X Bastidores: PE400-303647-- 1981
