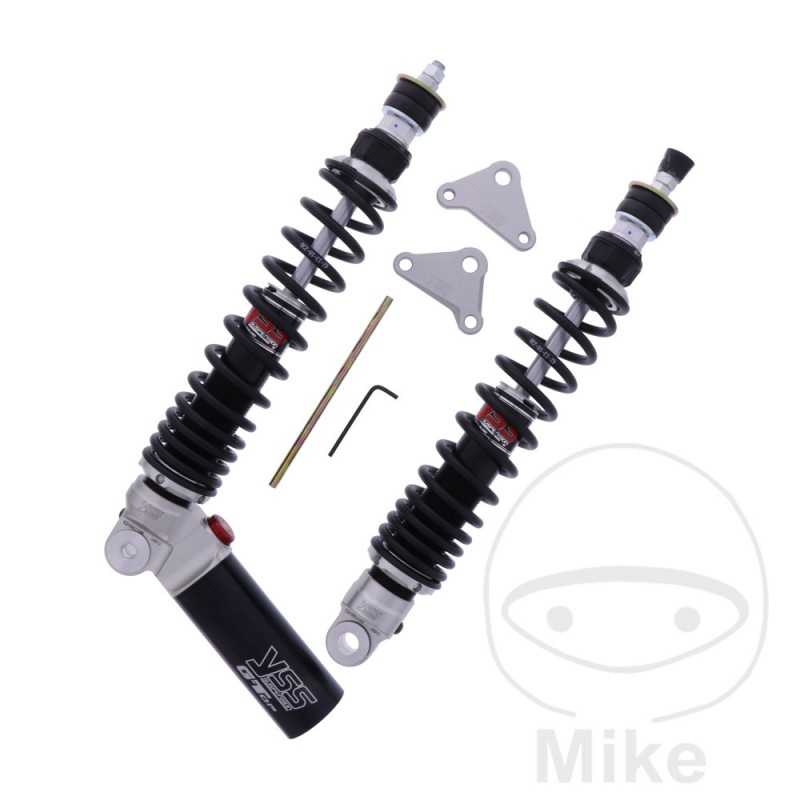

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.24.46

Unique in quality and features in the class of YSS products.

Milled aluminum body, external reservoir, fine-thread adjustable spring preload, rebound (30 clicks) and compression (30 clicks).

The adjustment tool is included in the supply.
TYPE: GAS PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10
ADJUSTMENTS: PRESSURE LEVEL WITH HIGH / LOW ADJUSTMENT
SPRING CHARACTERISTICS: 13
SPRING LENGTH: 230 MM
SPRING DIAMETER: 42 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa GTS 125 ie Super ABS 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2014-2015
Vespa GTS 125 ie Super Sport ABS 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2014-2015
