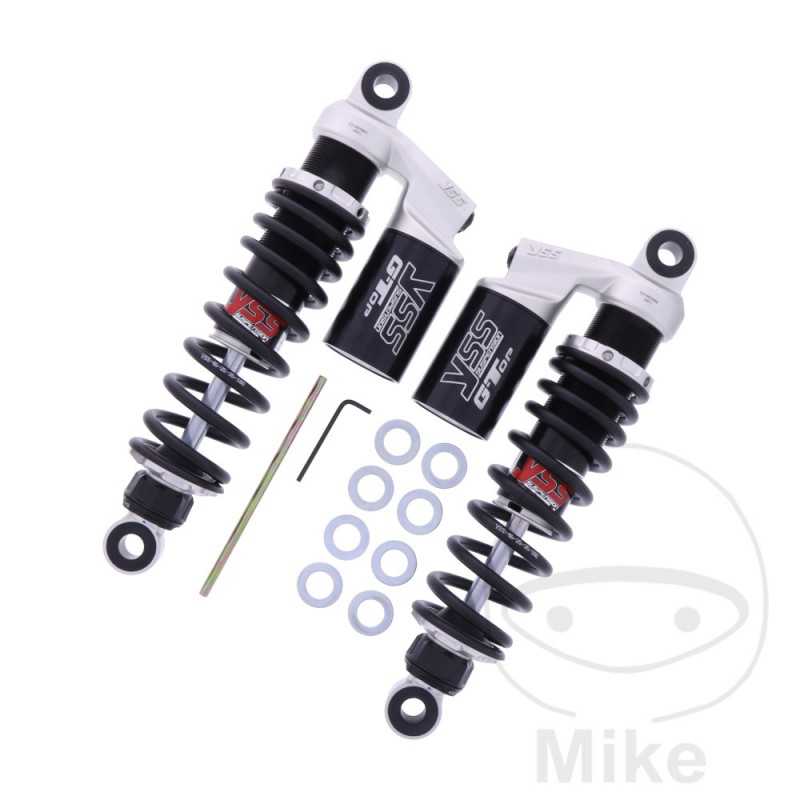

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.24.36

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) shock absorber.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 300 mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 25-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A K Bastidores: MLH PC56A-K5100001-- 2019
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A L Bastidores: MLH PC56A-L5200001-MLH PC56A-L5299999 2020-2021
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A N Bastidores: MLH PC56A-N5300001-- 2022
Honda CMX 500 S A2 Rebel Special Edition ABS 46 CV, 34 kw 2cil. PC56A L Bastidores: MLH PC56A-L5200001-MLH PC56A-L5299999 2020-2021
Honda CMX 500 S A2 Rebel Special Edition ABS 46 CV, 34 kw 2cil. PC56A N Bastidores: MLH PC56A-L5300001-- 2022
