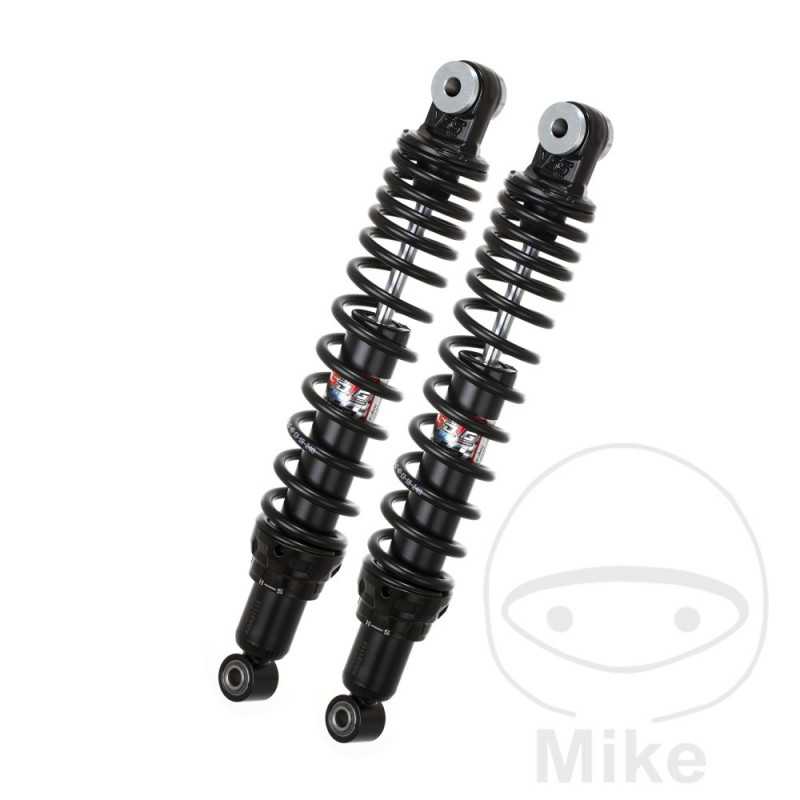

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.23.77

Gas pressure shock absorber with steel housing, spring preload adjustable at 5 detent points.



Adjustment tool included in delivery.
TYPE: GAS PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa GT 200 L Granturismo 20 CV, 14,7 kw 1cil. M31200 Bastidores: ZAPM31200 henceforth0001001-- 2004-2006
Vespa GTS 125 14,3 CV, 10,5 kw 1cil. M31300 Bastidores: ZAPM31300 henceforth1000001-- 2007-2009
Vespa GTS 250 ie 21,3 CV, 15,7 kw 1cil. M45100 Bastidores: ZAPM45100 henceforth0001001-- 2006-2011
Vespa GTS 250 ie ABS 21,3 CV, 15,7 kw 1cil. M45101 Bastidores: ZAPM45101 henceforth0001001-- 2006-2009
Vespa GTV 300 ie Via Montenapoleone 21,5 CV, 15,8 kw 1cil. M45201 Bastidores: ZAPM45201 henceforth0001001-- 2010-2011
