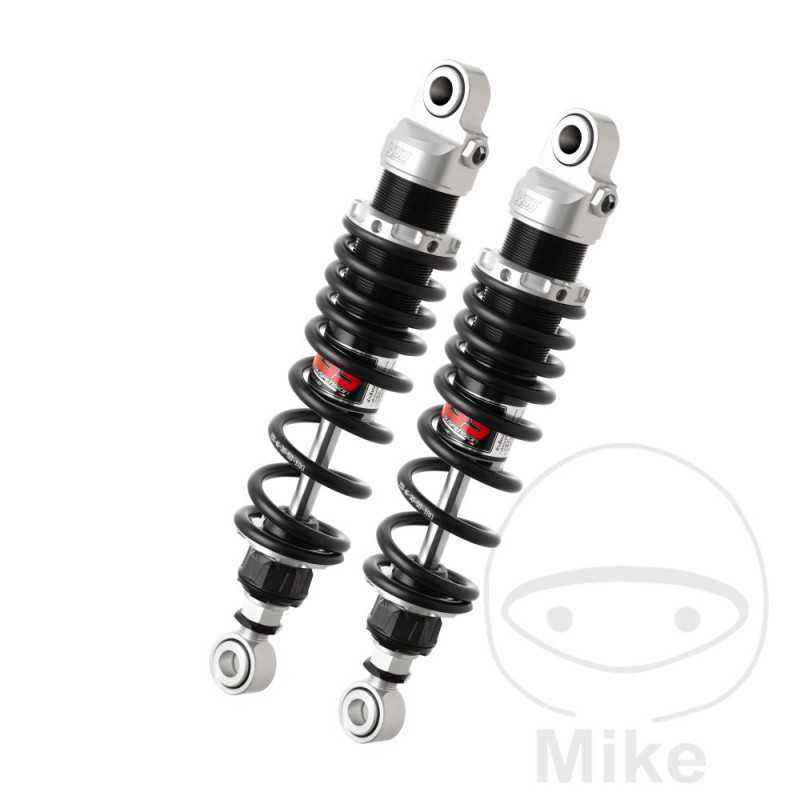

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.23.57

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU1 Bastidores: 4PU henceforth00101-4PU henceforth07099 1995
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU3 Bastidores: 4PU henceforth09101-- 1996
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU7 Bastidores: 4PU henceforth24919-- 1997
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU9 Bastidores: 4PU henceforth31361-- 1998
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP022 5EA2 Bastidores: RP022 henceforth00301-- 1999
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP022 5EAA Bastidores: RP022 henceforth03267-- 2000
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP022 5EAH Bastidores: RP022 henceforth07832-- 2001
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP061 5EAT Bastidores: RP061 henceforth00342-- 2002
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP102 5WM8 Bastidores: RP102 henceforth00301-- 2004
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP102 5WMB Bastidores: RP102 henceforth01230-- 2005
Yamaha XJR 1300 106 CV, 78 kw 4cil. RP102 5WME Bastidores: RP102 henceforth01987-- 2006
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP022 5EA2 Bastidores: RP022 henceforth00301-- 1999
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP022 5EAA Bastidores: RP022 henceforth03267-- 2000
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP022 5EAH Bastidores: RP022 henceforth07832-- 2001
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP061 5EAT Bastidores: RP061 henceforth00342-- 2002
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP102 5WM8 Bastidores: RP102 henceforth00301-- 2004
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP102 5WMB Bastidores: RP102 henceforth01230-- 2005
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP102 5WME Bastidores: RP102 henceforth01987-- 2006
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP191 5WMG Bastidores: RP191 henceforth00301-- 2007
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP191 5WMK Bastidores: RP191 henceforth02823-- 2008
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP191 5WMM Bastidores: RP191 henceforth05201-- 2009
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP191 5WMP Bastidores: RP191 henceforth06101-- 2010
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP191 5WMS Bastidores: RP191 henceforth06844-- 2011-2012
Yamaha XJR 1300 98 CV, 72 kw 4cil. RP191 5WMW Bastidores: RP191 henceforth07830-- 2013-2014
