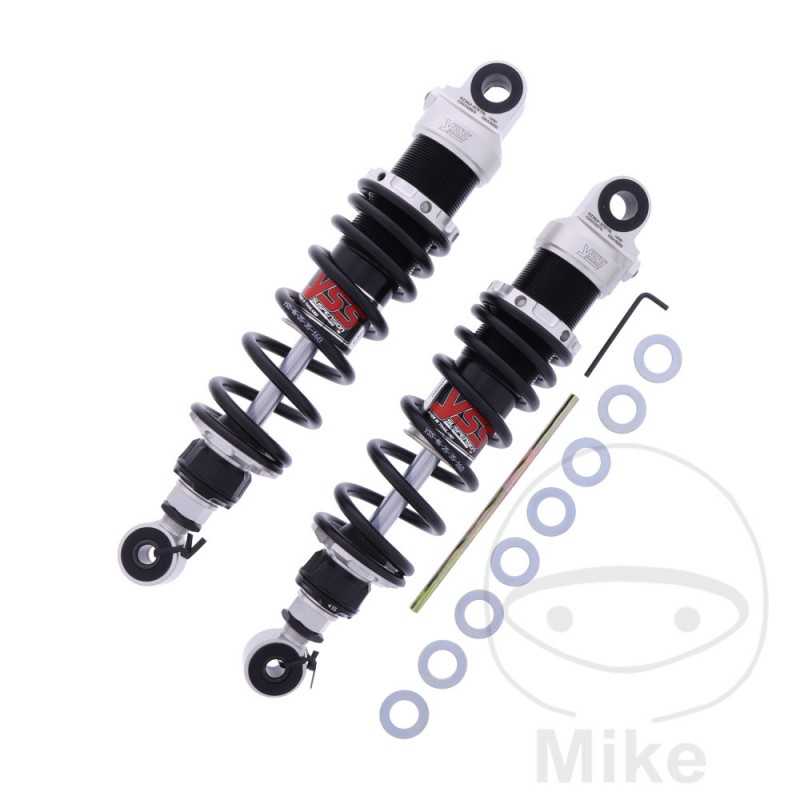

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.23.39

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 305MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 160 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB-X4 1300 DC 98 CV, 72 kw 4cil. SC38 V Bastidores: SC38-1000001-- 1997
Honda CB-X4 1300 DC 98 CV, 72 kw 4cil. SC38 W Bastidores: SC38-1100001-- 1998
Honda CB-X4 1300 DC 98 CV, 72 kw 4cil. SC38 X Bastidores: SC38-1200001-- 1999
