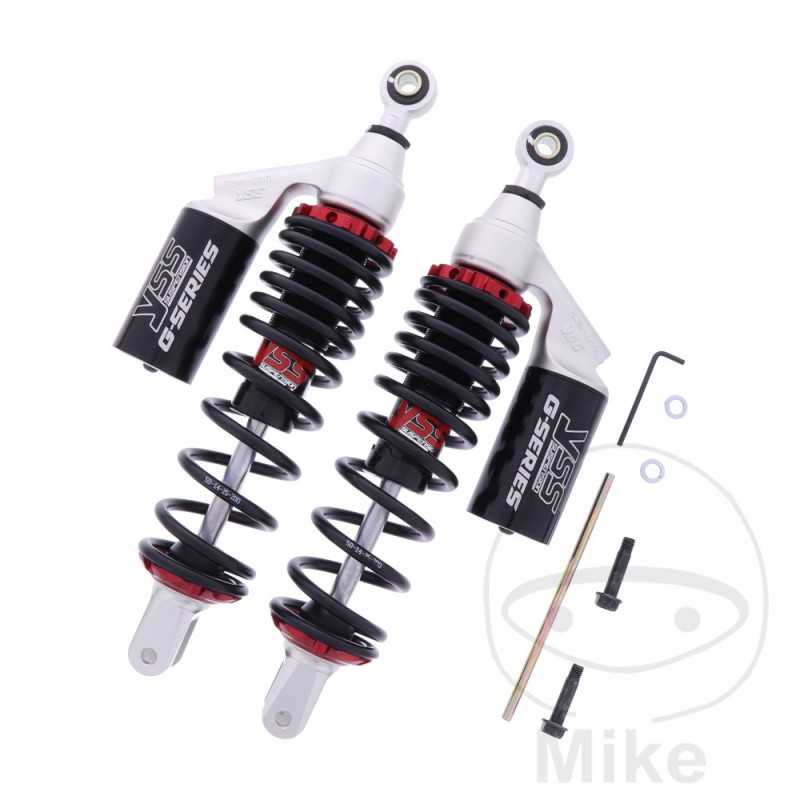

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.23.31

Milled aluminum body, spring preload adjustable via fine thread.

Locking of the spring preload by means of a grub screw.

The length of the damper can be adjusted by +-5mm.

Adjustment tool included in delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 14-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 50 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SE931 2DS1 Bastidores: SE931 henceforth00101-- 2015-2016
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV31 Bastidores: SEC71 henceforth00106-- 2017
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV37 Bastidores: SEC71 henceforth00108-- 2018
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV3C Bastidores: SEC71 henceforth31321-- 2019
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV3H Bastidores: SEC71 henceforth49001-- 2020
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEG51 BAL1 Bastidores: SEG51 henceforth00101-- 2021
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV41 Bastidores: SG431 henceforth00101-- 2017
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV46 Bastidores: SG431 henceforth04881-- 2018
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV49 Bastidores: SG431 henceforth09241-- 2019
