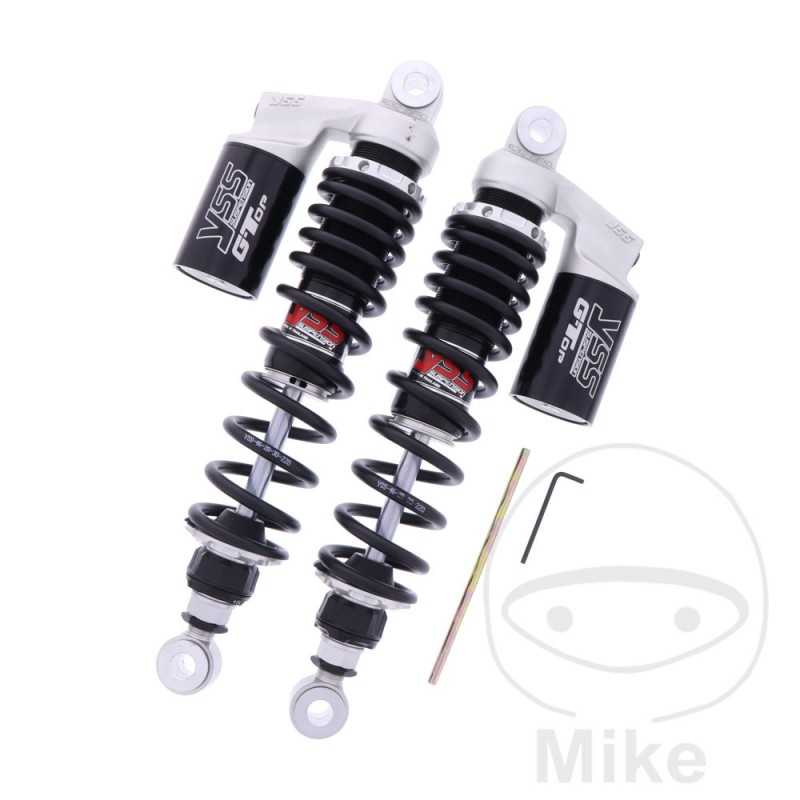

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.23.21

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) shock absorber.

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi California 1100 EV ie 34 CV, 25 kw 2cil. KD Bastidores: --- 2001-2002
Moto Guzzi California 1100 EV ie 50 CV, 37 kw 2cil. KD Bastidores: --- 2001-2002
Moto Guzzi California 1100 EV ie 74 CV, 54 kw 2cil. KD Bastidores: --- 2002
Moto Guzzi California 1100 EV ie 74 CV, 54 kw 2cil. KDG00 Bastidores: --- 2003
Moto Guzzi California 1100 EV ie 75 CV, 55 kw 2cil. KD Bastidores: --- 2001
Moto Guzzi California 1100 EV ie 75 CV, 55 kw 2cil. KDG00 Bastidores: --- 2004-2005
Moto Guzzi California 1100 EV ie Touring 75 CV, 55 kw 2cil. KD Bastidores: --- 2002
Moto Guzzi California 1100 EV ie Touring 75 CV, 55 kw 2cil. KDG00 Bastidores: --- 2003-2005
