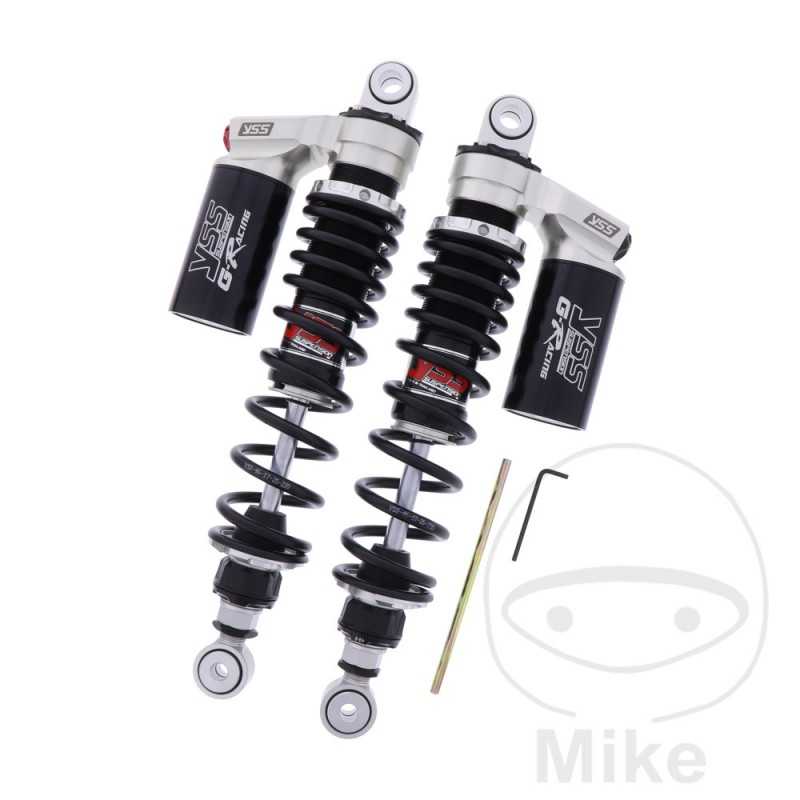

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.60

Milled aluminum body, spring strut adjustable for spring preload, rebound (30 clicks) and compression (high/low 30 clicks).

The spring preload is locked by means of a grub screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 360MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: PRESSURE LEVEL WITH HIGH / LOW ADJUSTMENT
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Royal Enfield Continental 650 GT EFI Twin ABS 47 CV, 34,5 kw 2cil. - Bastidores: --- 2018-2020
Royal Enfield Interceptor 650 INT EFI Twin ABS 47 CV, 34,5 kw 2cil. - Bastidores: --- 2018-2020
