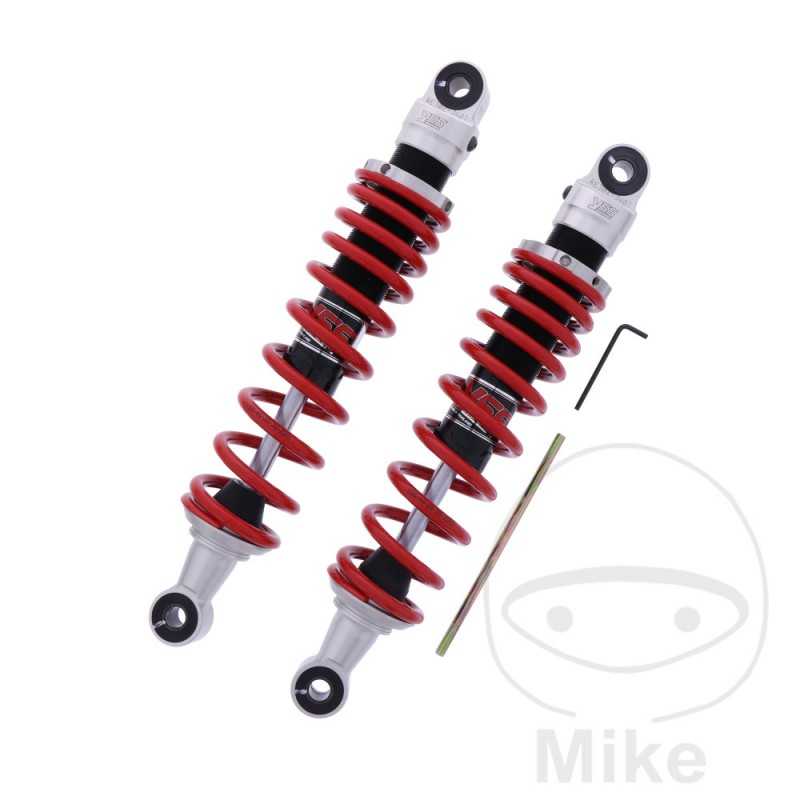

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.51

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 270 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Benelli Imperiale 400 ABS 20,4 CV, 15,5 kw 1cil. - Bastidores: --- 2019-2020
Benelli Imperiale 400 ABS 21 CV, 15,5 kw 1cil. - Bastidores: --- 2021
