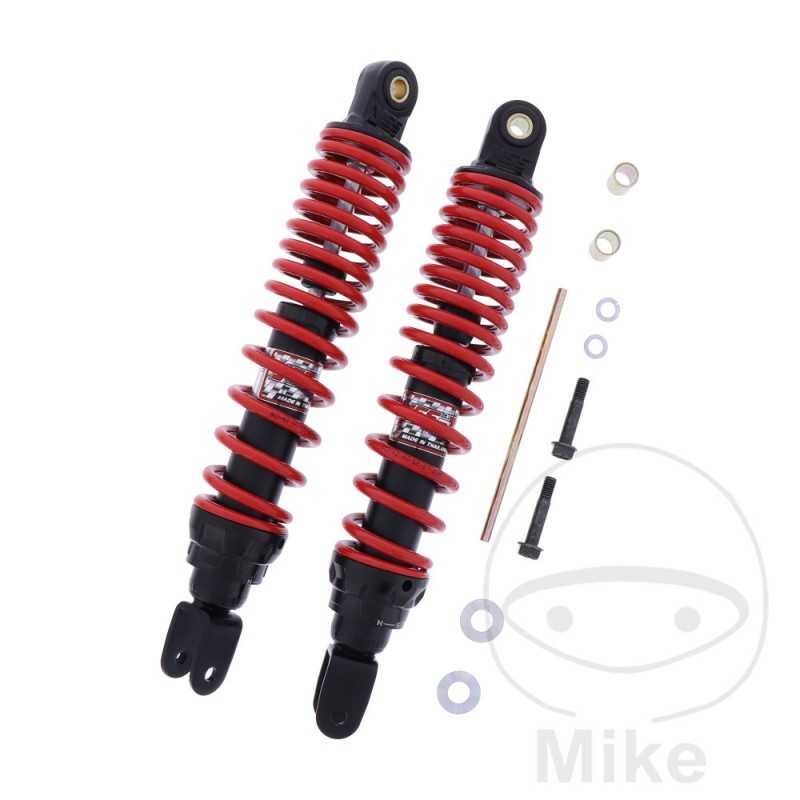

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.41

Gas-pressurized shock absorber with steel housing, spring preload adjustable at 5 detent points.



Adjustment tool included in delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 330MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 42-12-27
SPRING LENGTH: 215 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF64A H Bastidores: ZDC JF64A-HF000001-- 2017-2018
