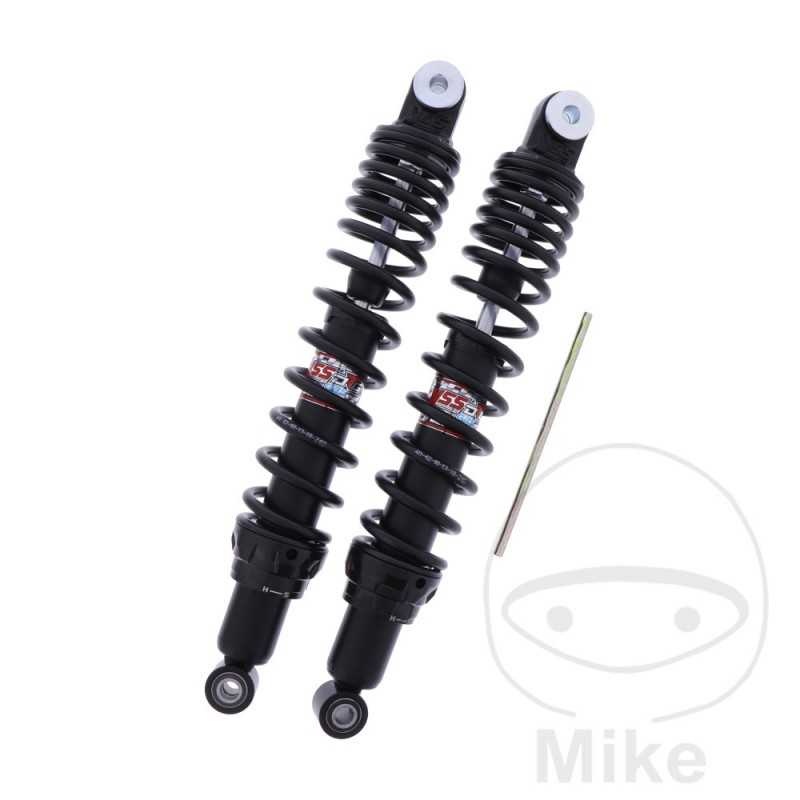

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.39

Gas pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 240 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 20 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Medley 125 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2016-2019
Piaggio Medley 125 S 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2016-2019
