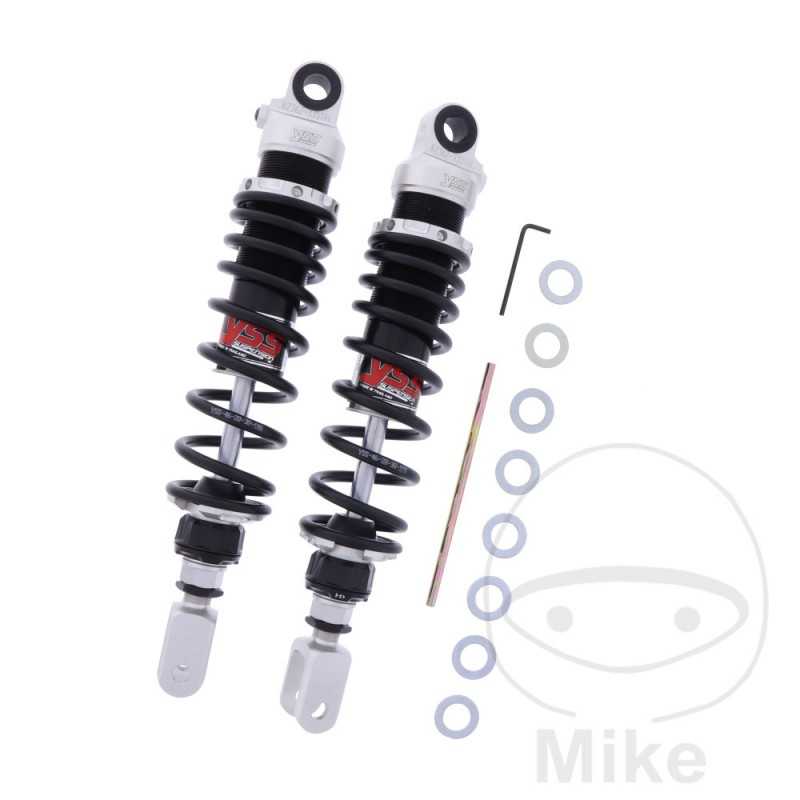

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.38

Milled aluminum body, suspension strut adjustable for spring preload and rebound (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 F2 Seven Fifty 34 CV, 25 kw 4cil. RC42B 1 Bastidores: JH2 RC42B-1M700001-- 2001-2003
Honda CB 750 F2 Seven Fifty 34 CV, 25 kw 4cil. RC42B T Bastidores: JH2 RC42B-TM000001-- 1996
Honda CB 750 F2 Seven Fifty 34 CV, 25 kw 4cil. RC42B V Bastidores: JH2 RC42B-VM100001-- 1997
Honda CB 750 F2 Seven Fifty 34 CV, 25 kw 4cil. RC42B W Bastidores: JH2 RC42B-WM200001-- 1998
Honda CB 750 F2 Seven Fifty 34 CV, 25 kw 4cil. RC42B X Bastidores: JH2 RC42B-XM300001-- 1999-2000
Honda CB 750 F2 Seven Fifty 73 CV, 54 kw 4cil. RC42A 1 Bastidores: JH2 RC42A-1M700001-- 2001-2003
Honda CB 750 F2 Seven Fifty 73 CV, 54 kw 4cil. RC42A T Bastidores: JH2 RC42A-TM000001-- 1996
Honda CB 750 F2 Seven Fifty 73 CV, 54 kw 4cil. RC42A V Bastidores: JH2 RC42A-VM100001-- 1997
Honda CB 750 F2 Seven Fifty 73 CV, 54 kw 4cil. RC42A W Bastidores: JH2 RC42A-WM200001-- 1998
Honda CB 750 F2 Seven Fifty 73 CV, 54 kw 4cil. RC42A X Bastidores: JH2 RC42A-XM300001-- 1999-2000
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 A Bastidores: RC01-2115751-RC01-2118618 1980
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 B Bastidores: RC01-2300006-RC01-2399999 1981-1982
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 Z Bastidores: RC01-2000121-RC01-2032973 1978-1979
Honda CB 750 K Four 63 CV, 46 kw 4cil. CB750 6 Bastidores: CB750-2550437-CB750-2586393 1976
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 0 Bastidores: CB750-1005084-CB750-1099999 1969-1970
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 1 Bastidores: CB750-1053409-CB750-1199999 1970-1971
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 2 Bastidores: CB750-2005737-CB750-2199999 1972-1975
Honda GL 1000 K Goldwing 78 CV, 57 kw 4cil. GL2 3 Bastidores: GL2-4052792-GL2-4060876 1978
Honda GL 1000 K Goldwing 82 CV, 60 kw 4cil. GL1 1 Bastidores: GL1-2000002-GL1-2041275 1976
Honda GL 1000 K Goldwing 82 CV, 60 kw 4cil. GL1 2 Bastidores: GL1-3010003-GL1-3026655 1977
Honda GL 1000 LTD Goldwing 82 CV, 60 kw 4cil. GL1 Bastidores: GL1-2037067-GL1-2038362 1976
Honda GL 1000 Z Goldwing 78 CV, 57 kw 4cil. GL2 Bastidores: GL2-4113174-GL2-4117645 1979
