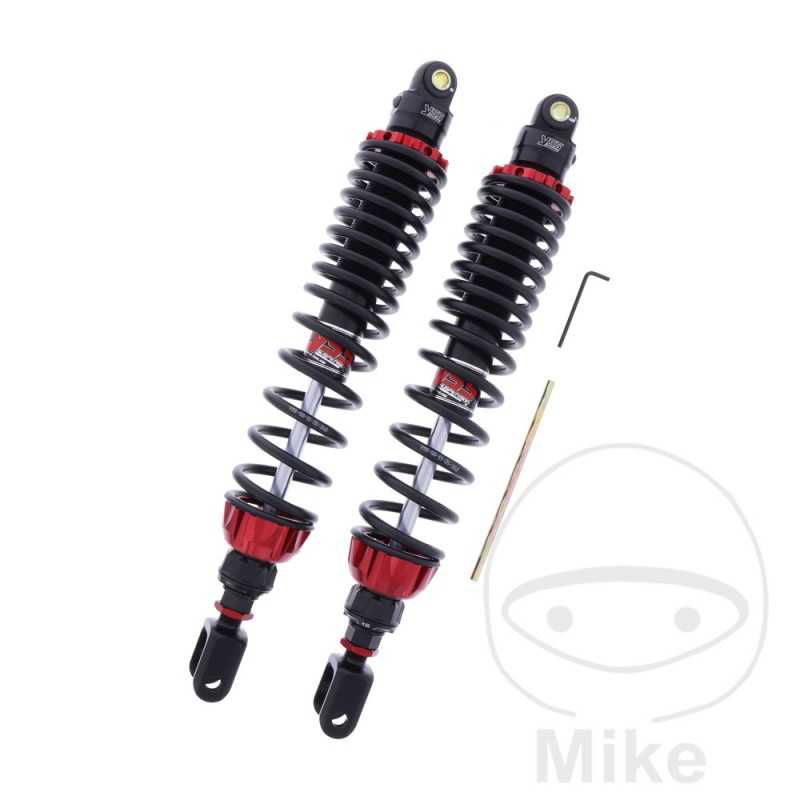

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.18

Milled aluminum body, suspension strut adjustable for spring preload and rebound (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 430MM
LOWER FIXING: FORK
FORK WIDTH: 25 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 11-25
SPRING LENGTH: 260 MM
SPRING DIAMETER: 50 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NSS 300 A Forza ABS 25,2 CV, 18,5 kw 1cil. NF08A K Bastidores: ZDC NF08A-KF000001-- 2018
Honda NSS 300 A Forza ABS Top Case 25,2 CV, 18,5 kw 1cil. NF08A K Bastidores: ZDC NF08A-KF000001-- 2019-2020
Honda NSS 350 A Forza ABS Smart Topcase 29,2 CV, 21,5 kw 1cil. NF10A M Bastidores: ZDC NF10A-MF000001-- 2021
Honda NSS 350 A Forza ABS Smart Topcase 29,2 CV, 21,5 kw 1cil. NF10A N Bastidores: ZDC NF10A-NF025001-- 2022
Honda NSS 350 Forza ABS 29,4 CV, 21,6 kw 1cil. - Bastidores: --- 2021
Honda NSS 350 Forza ABS Voice Control 29,4 CV, 21,6 kw 1cil. - Bastidores: --- 2021
