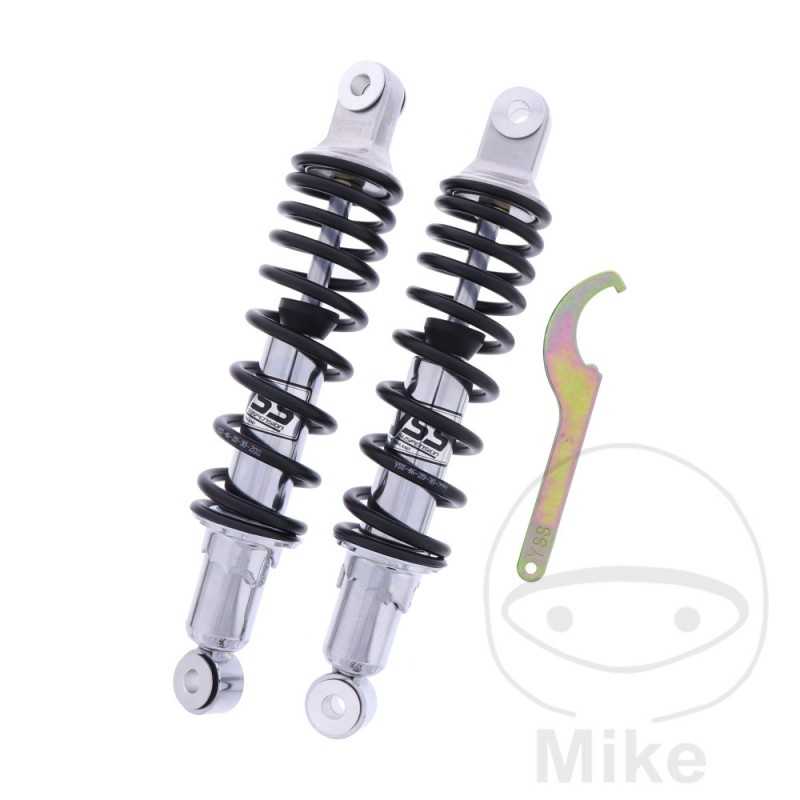

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.11

Oil pressure shock absorber with steel housing, spring preload adjustable at 5 detent points.



Adjustment tool included in the scope of supply.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Benelli Sei 750 58 CV, 43 kw 6cil. - Bastidores: --- 1977-1978
Benelli Sei 750 63 CV, 46 kw 6cil. - Bastidores: --- 1975-1976
Ducati Supersport 900 SS 68 CV, 50 kw 2cil. 900SS Bastidores: --- 1975-1982
Ducati Supersport 900 SS MHR II Mike Hailwood Replica 69 CV, 51 kw 2cil. 900SS-HW Bastidores: --- 1983-1985
Ducati Supersport 900 SS MHR Mike Hailwood Replica 72 CV, 53 kw 2cil. 900SS-HW Bastidores: --- 1979-1982
