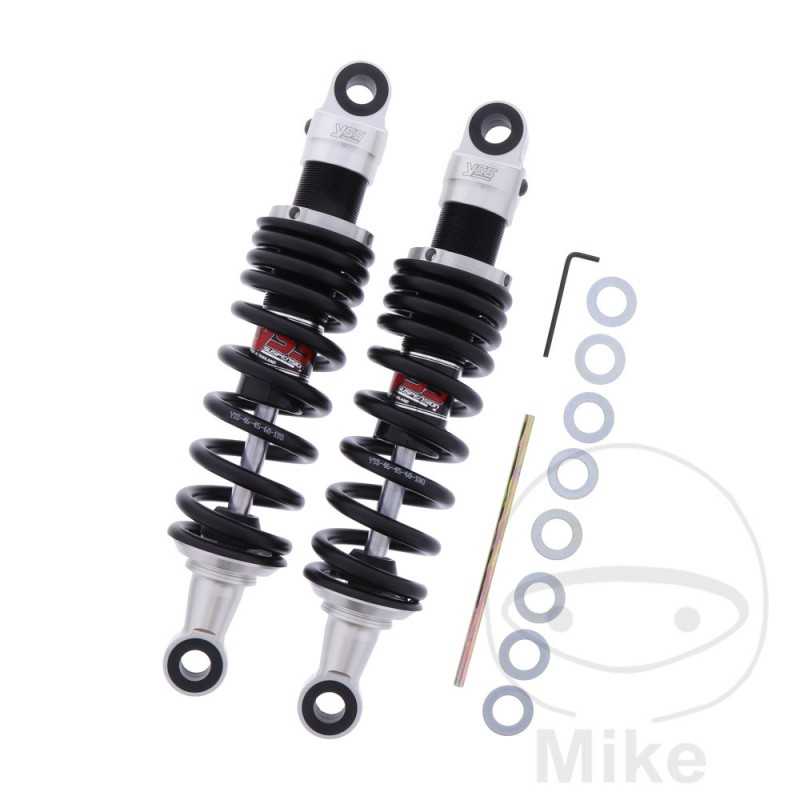

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.22.03

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 305MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 45.60
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 3 Bastidores: 1HF SC52A-3A000001-1HF SC52A-3A099999 2003
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 4 Bastidores: 1HF SC52A-4A100001-1HF SC52A-4A199999 2004
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 5 Bastidores: 1HF SC52A-5A200001-1HF SC52A-5A299999 2005
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 6 Bastidores: 1HF SC52A-6A300001-1HF SC52A-6A399999 2006
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 7 Bastidores: 1HF SC52A-7A400001-- 2007
