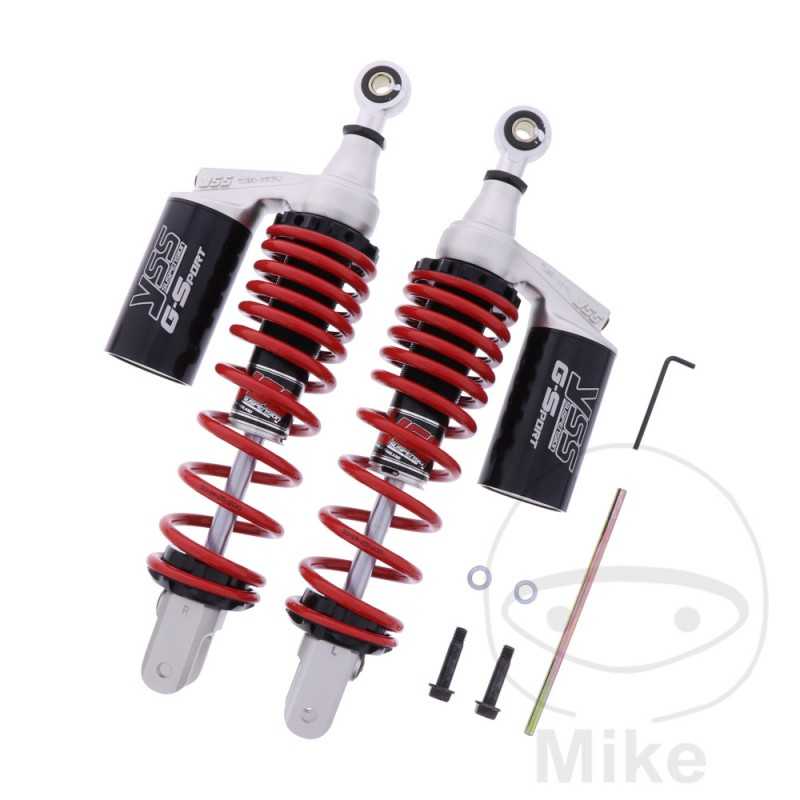

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.21.57

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The shock length can be adjusted by +10mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 14-25
SPRING LENGTH: 185 MM
SPRING DIAMETER: 50 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV41 Bastidores: SG431 henceforth00101-- 2017
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV46 Bastidores: SG431 henceforth04881-- 2018
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV49 Bastidores: SG431 henceforth09241-- 2019
