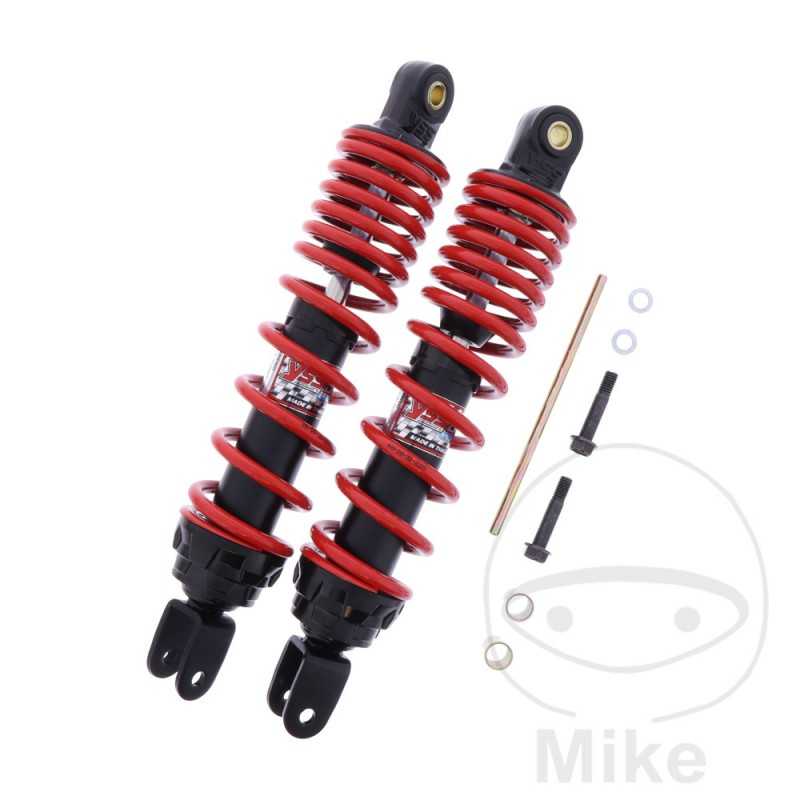

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.21.26

Gas pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 315MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 16-31
SPRING LENGTH: 215 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A A Bastidores: MLH JF28A-A5000001-MLH JF28A-A5999999 2010-2011
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A C Bastidores: MLH JF28A-A5200001-MLH JF28A-A5299999 2012-2014
Honda PCX 125 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF47A D Bastidores: ZDC JF47A-DF000001-ZDCJF47A-DF999999 2013
Honda PCX 150 WW 150 1cil. KF12A C Bastidores: MLH KF12A-C50000001-MLHKF12A-C5099999 2012
Honda PCX 150 WW 150 1cil. KF15A D Bastidores: ZDC KF15A-DF000001-ZDC KF15A-DF099999 2013
