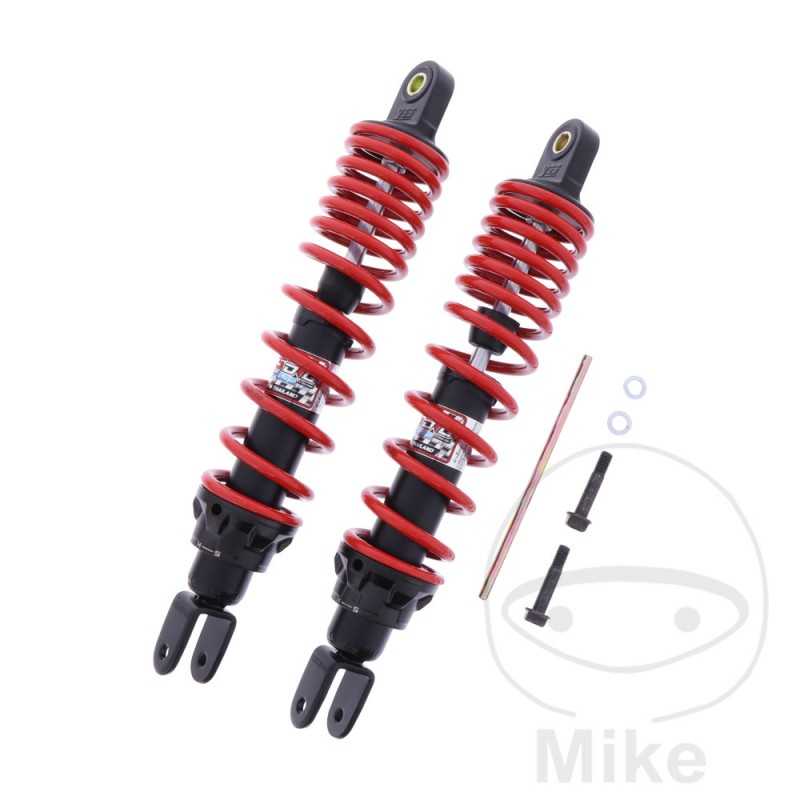

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.21.10

Gas pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 14-25
SPRING LENGTH: 215 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SE931 2DS1 Bastidores: SE931 henceforth00101-- 2015-2016
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV41 Bastidores: SG431 henceforth00101-- 2017
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV46 Bastidores: SG431 henceforth04881-- 2018
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV49 Bastidores: SG431 henceforth09241-- 2019
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV4D Bastidores: SG431 henceforth13921-- 2020
Yamaha GPD 155 A NMax ABS 15 CV, 11 kw 1cil. SG651 BBD1 Bastidores: SG651 henceforth00101-- 2021
