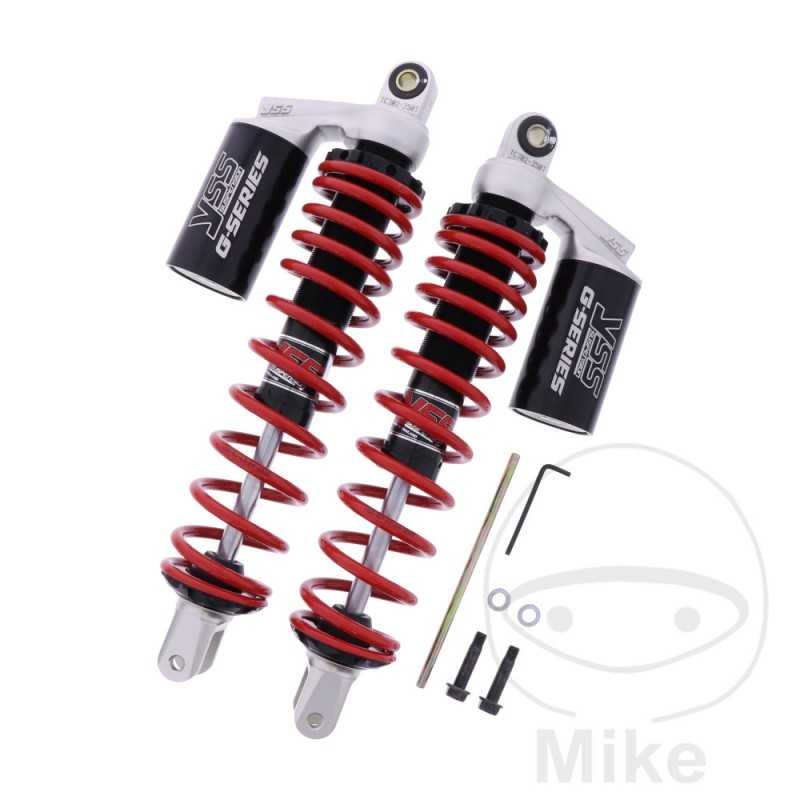

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.21.07

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length : 350mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 13-24
SPRING LENGTH: 255 MM
SPRING DIAMETER: 50 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha CZD 300 A Iron Max ABS 28 CV, 21 kw 1cil. SH134 BY34 Bastidores: SH134- 000821-- 2019-2020
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. - BBA3 Bastidores: --- 2022
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. - BBA4 Bastidores: --- 2022
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. SH081 B741 Bastidores: SH081 henceforth00103-- 2017
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. SH131 BY31 Bastidores: SH131 henceforth00080-- 2018
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. SH131 BY35 Bastidores: SH131 henceforth19163-- 2019
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. SH131 BY37 Bastidores: SH131 henceforth34041-- 2020
Yamaha CZD 300 A X-Max ABS 28 CV, 21 kw 1cil. SH141 BBA1 Bastidores: SH141 henceforth00090-- 2021
Yamaha CZD 300 A X-Max Tech Max ABS 28 CV, 21 kw 1cil. - Bastidores: --- 2022
Yamaha CZD 300 A X-Max Tech Max ABS 28 CV, 21 kw 1cil. SH135 BY36 Bastidores: SH135 henceforth00141-- 2020
Yamaha CZD 300 A X-Max Tech Max ABS 28 CV, 21 kw 1cil. SH142 BBA2 Bastidores: SH142 henceforth01501-- 2021
