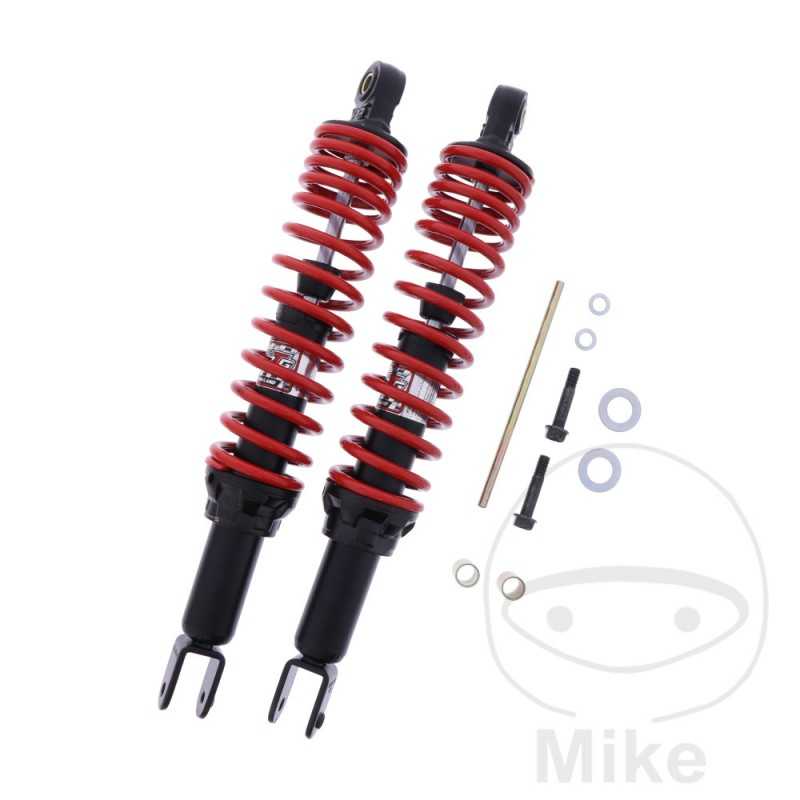

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.21.06

Gas pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 380mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SYM GTS 300 ie Joymax ABS 29 CV, 21,3 kw 1cil. LN30W6-EU Bastidores: --- 2014-2017
SYM GTS 300 ie Joymax CBS 29 CV, 21,3 kw 1cil. LN30W1-6 Bastidores: --- 2013-2017
