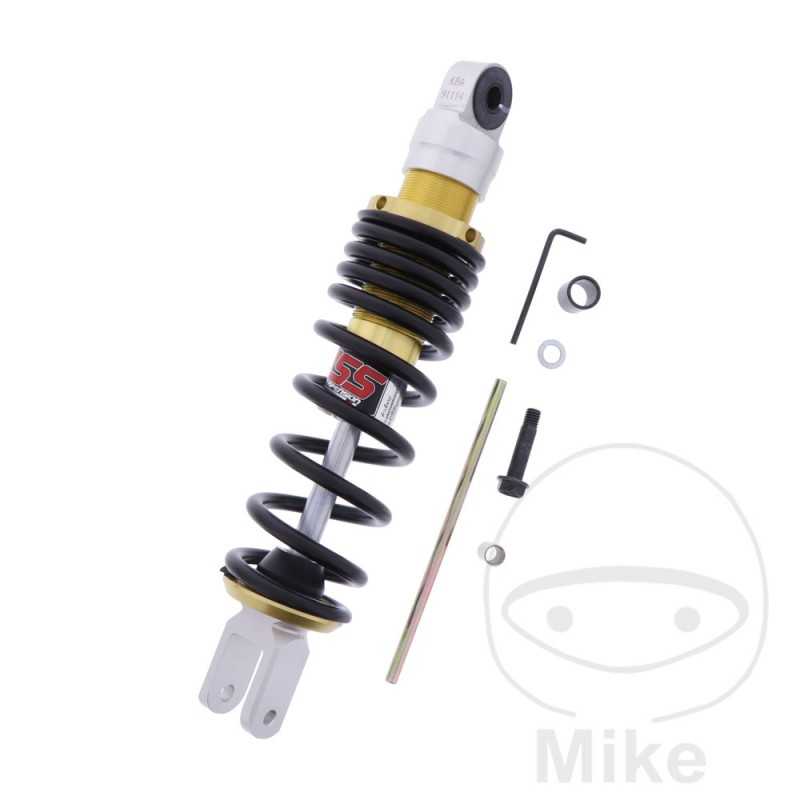

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.81

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 290MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Gulliver 50 AC 4,1 CV, 3 kw 1cil. LH000 Bastidores: --- 1995-1999
Aprilia Gulliver 50 LC 4,3 CV, 3,2 kw 1cil. LH040 T Bastidores: --- 1996
Aprilia Gulliver 50 LC 4,3 CV, 3,2 kw 1cil. LH040 V Bastidores: --- 1997
Aprilia Gulliver 50 LC 4,3 CV, 3,2 kw 1cil. LH040 W Bastidores: --- 1998-1999
Aprilia Rally 50 AC 4,3 CV, 3,2 kw 1cil. MD000 Bastidores: --- 1995-1999
Aprilia Rally 50 AC KAT 4,3 CV, 3,2 kw 1cil. MDH00 Bastidores: --- 2000-2002
Aprilia Rally 50 LC DD 4,6 CV, 3,4 kw 1cil. MDA00 Bastidores: --- 1996-1999
Aprilia Rally 50 LC DT 4,6 CV, 3,4 kw 1cil. MDA10 Bastidores: --- 1996-1999
Aprilia Scarabeo 50 2T DD 3,1 CV, 2,3 kw 1cil. PF010 Bastidores: --- 1998-1999
Aprilia Scarabeo 50 2T DD KAT 3,1 CV, 2,3 kw 1cil. PFG10 Bastidores: --- 2000-2002
Aprilia Scarabeo 50 2T DT 3,1 CV, 2,3 kw 1cil. LE Bastidores: --- 1994-1997
Aprilia Scarabeo 50 2T DT KAT 3,1 CV, 2,3 kw 1cil. PFG00 Bastidores: --- 2000-2002
Aprilia Sonic 50 AC 3,2 CV, 2,4 kw 1cil. PB000 Bastidores: --- 1998-2002
Aprilia Sonic 50 GP LC 3,8 CV, 2,8 kw 1cil. PB010 Bastidores: --- 1998-1999
Aprilia SR 50 AC cilindro horizontal 2,7 CV, 2 kw 1cil. MR/LF Bastidores: --- 1994-1996
Aprilia SR 50 AC Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1992-1993
Aprilia SR 50 AC Replica cilindro horizontal 2,7 CV, 2 kw 1cil. MR/LF Bastidores: --- 1994-1996
Aprilia SR 50 AC Replica Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1994
Aprilia SR 50 AC Urban Kid Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1992-1993
Aprilia SR 50 AC WWW 4,2 CV, 3,1 kw 1cil. LY000 Bastidores: --- 1997-1998
Aprilia SR 50 AC WWW KAT 4,2 CV, 3,1 kw 1cil. LYH00 Bastidores: --- 1999-2002
Aprilia SR 50 LC cilindro horizontal 1cil. MR/LC Bastidores: --- 1994-1996
Aprilia SR 50 LC cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZ010 Bastidores: --- 1997-1998
Aprilia SR 50 LC Netscaper cilindro horizontal 4,6 CV, 3,4 kw 1cil. MZ010 Bastidores: --- 1997-1998
Aprilia SR 50 LC Racing 3,5 CV, 2,5 kw 1cil. RLA10 Bastidores: --- 2000-2002
Aprilia SR 50 LC Racing cilindro horizontal 4,5 CV, 3,3 kw 1cil. MZL10 Bastidores: --- 1999
Aprilia SR 50 LC Racing cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZC00 Bastidores: --- 1997-1998
Aprilia SR 50 LC Stealth cilindro horizontal 4,5 CV, 3,3 kw 1cil. MZL10 Bastidores: --- 1999
Aprilia SR 50 LC Stealth cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZC00 Bastidores: --- 1997-1998
Benelli 491 50 RR LC 4,1 CV, 3 kw 1cil. BA0100 Bastidores: --- 2000-2002
Benelli 491 50 ST AC 4,1 CV, 3 kw 1cil. BA0102 Bastidores: --- 2001-2002
Cagiva City 50 Lucky Explorer 4,1 CV, 3 kw 1cil. 4P Bastidores: --- 1992-1997
Hercules SR 125 Samba 8,4 CV, 6,2 kw 1cil. 421 F121-DE Bastidores: --- 1994-1995
Kymco Cobra 50 Cross 4,8 CV, 3,5 kw 1cil. SF10AF SF Bastidores: RFBSF10AF-- 1997-1999
Kymco Cobra 50 Racer 4,8 CV, 3,5 kw 1cil. SF10AG SF Bastidores: RFBSF10AG-- 1997-1999
Kymco Dink 50 LC Bet &Win 3,1 CV, 2,3 kw 1cil. S80010 Bastidores: RFBS80010-- 2005-2007
Kymco Dink 50 LC Bet &Win 3,8 CV, 2,8 kw 1cil. S80000 Bastidores: RFBS80000-- 2001-2004
Kymco Scout 50 2,7 CV, 2 kw 1cil. SC10AQ KCX Bastidores: RFBSC10AQ-- 1997-1999
Kymco Top Boy 50 Cross 4,1 CV, 3 kw 1cil. SF10AK SF Bastidores: RFBSF10AK-- 2005-2006
Kymco Top Boy 50 Cross 4,3 CV, 3,2 kw 1cil. SF10AK SF Bastidores: RFBSF10AK-- 2003-2004
Kymco Top Boy 50 Cross 4,8 CV, 3,5 kw 1cil. SF10AF SF Bastidores: RFBSF10AF-- 2000-2002
Kymco Top Boy 50 Racer 4,3 CV, 3,2 kw 1cil. SF10AK SF Bastidores: RFBSF10AG-15-- 2003
Kymco Top Boy 50 Racer 4,8 CV, 3,5 kw 1cil. SF10AG SF Bastidores: RFBSF10AG-- 2000-2002
Kymco Top Boy 50 Racer Exclusive 4,8 CV, 3,5 kw 1cil. SF10AG SF Bastidores: RFBSF10AG-55-- 2000-2001
MBK YH 50 Flipper 3,3 CV, 2,4 kw 1cil. - 5UB7 Bastidores: --- 2005-2006
MBK YH 50 Flipper 3,3 CV, 2,4 kw 1cil. - 5XS2 Bastidores: --- 2003
MBK YH 50 Flipper 3,3 CV, 2,4 kw 1cil. SA03F 5UB4 Bastidores: SA03F00 henceforth000102-- 2004
MBK YH 50 Flipper 3,4 CV, 2,5 kw 1cil. SA037 5FV2 Bastidores: SA037004 henceforth00101-- 1999
MBK YH 50 Flipper 3,4 CV, 2,5 kw 1cil. SA037 5FV4 Bastidores: SA037004 henceforth00101-- 2000
MBK YH 50 Flipper 4,5 CV, 3,3 kw 1cil. SA037 5FV6 Bastidores: SA037004 henceforth00101-- 2001
MBK YH 50 Flipper 4,5 CV, 3,3 kw 1cil. SA03D 5PF4 Bastidores: SA03D000 henceforth00201-- 2002
Peugeot SV 125 8,4 CV, 6,2 kw 1cil. F 121-DE F121-DE Bastidores: --- 1993-1995
Peugeot SV 50 TT Junior horquilla tele 4,3 CV, 3,2 kw 1cil. VGA 395 F052-DE Bastidores: --- 1993-1996
Yamaha YH 50 Why 3,3 CV, 2,4 kw 1cil. SA03E 5UB8 Bastidores: SA03E henceforth09044-- 2006-2013
