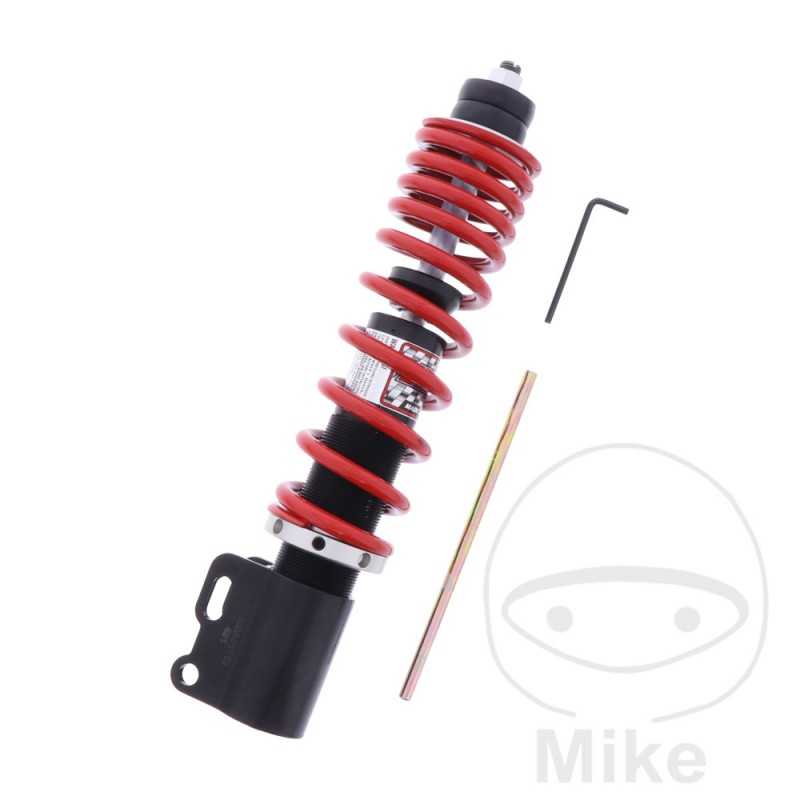

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.80

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXING: BOLT
INNER EYE DIAMETER: 10 MM
Length: 210mm
LOWER FIXING: DOUBLE SCREW
DOUBLE SCREWED DISTANCE: 35-38 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 180 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa ET2 50 2T 3,6 CV, 2,7 kw 1cil. C16000 Bastidores: ZAPC16000 henceforth0001001-- 1997-2003
Vespa ET2 50 2T con catalizador 4,4 CV, 3,2 kw 1cil. C38100 Bastidores: ZAPC38100 henceforth0001001-- 2004-2005
Vespa ET2 50 i Fast Injection 3,6 CV, 2,7 kw 1cil. C12000 Bastidores: ZAPC12000 henceforth0001091-- 1998-2000
Vespa ET4 125 10,7 CV, 7,9 kw 1cil. M04000 Bastidores: ZAPM04000 henceforth0001001-- 1996-2000
Vespa ET4 125 LEADER 11 CV, 8 kw 1cil. M19000 Bastidores: ZAPM19000--- 2000-2005
Vespa ET4 50 4T 3,4 CV, 2,5 kw 1cil. C12610 Bastidores: ZAPC26100 henceforth0001001-- 2000-2003
Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44100 Bastidores: ZAPM44100 henceforth0001001-ZAPM44100 henceforth0031637 2005-2007
Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44300 Bastidores: ZAPM44300 henceforth0001001-- 2008-2009
Vespa LX 125 2V ie 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 henceforth0001001-- 2010-2013
Vespa LX 125 3V ie 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 henceforth0001001-- 2012-2014
Vespa LX 125 3V ie Touring 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 henceforth0001001-- 2012-2014
Vespa LX 150 11,7 CV, 8,6 kw 1cil. M44200 Bastidores: ZAPM44200 henceforth0001001-- 2005-2006
Vespa LX 150 11,7 CV, 8,6 kw 1cil. M44400 Bastidores: ZAPM44400 henceforth0001001-ZAPM44400 henceforth0022621 2006-2008
Vespa LX 150 2V ie 12,1 CV, 8,9 kw 1cil. M68200 Bastidores: ZAPM68200 henceforth0001001-- 2009-2012
Vespa LX 150 FL 11,7 CV, 8,6 kw 1cil. M44400 Bastidores: ZAPM44400 henceforth0022622-- 2009
Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0001001-ZAPC38101 henceforth0071000 2005-2008
Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0071001-- 2009-2009
Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0071001-- 2012-2013
Vespa LX 50 2T Touring 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0001001-- 2010-2013
Vespa LX 50 4T4V 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 henceforth0001001-- 2012-2013
Vespa LX 50 4T4V Touring 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 henceforth0001001-- 2010-2013
Vespa LXV 125 ie 10,7 CV, 7,9 kw 1cil. M68102 Bastidores: ZAPM68102 henceforth0001001-- 2010-2013
Vespa LXV 50 2T 4,4 CV, 3,2 kw 1cil. C38102 Bastidores: ZAPC38102 henceforth0001001-- 2007-2009
Vespa S 125 10,4 CV, 7,7 kw 1cil. M44302 Bastidores: ZAPM44302 henceforth0001001-- 2007-2009
Vespa S 125 3V ie 11,6 CV, 8,5 kw 1cil. M68301 Bastidores: ZAPM68301 henceforth0001001-- 2012-2014
Vespa S 50 2T 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 henceforth0001001-- 2007-2009
Vespa S 50 2T 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 henceforth0001001-- 2012-2014
Vespa S 50 2T /College 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 henceforth0001001-- 2010-2011
Vespa S 50 2T Sport 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 henceforth0001001-- 2012-2013
Vespa S 50 4V 4,4 CV, 3,2 kw 1cil. M38600 Bastidores: ZAPM38600 henceforth0001001-- 2012-2014
Vespa S 50 4V Sport 4,4 CV, 3,2 kw 1cil. M38600 Bastidores: ZAPM38600 henceforth0001001-- 2012-2013
