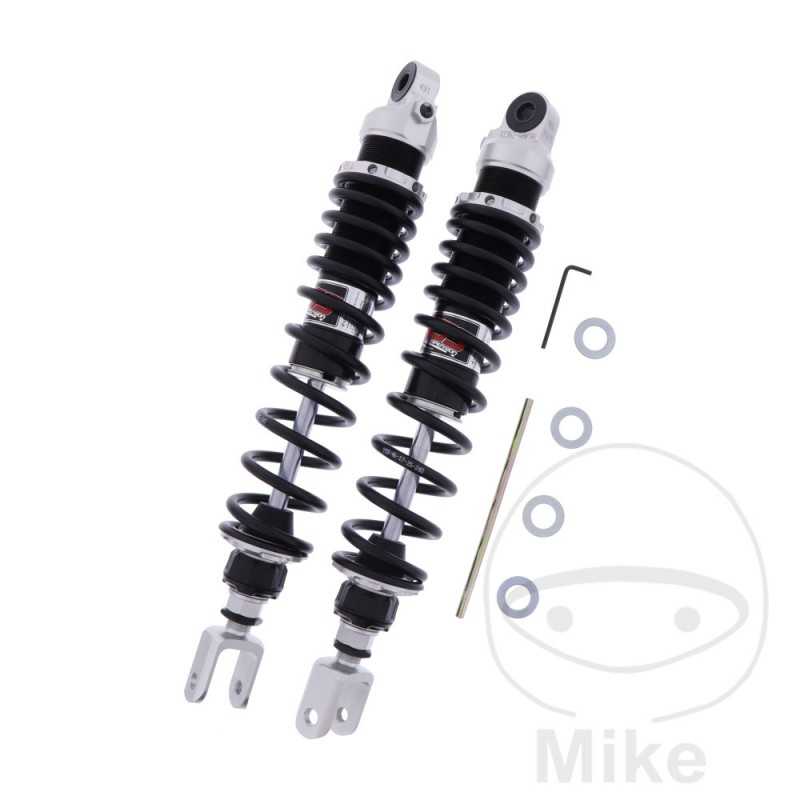

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.68

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 400MM
LOWER FIXING: FORK
FORK WIDTH: 26 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SYM Maxsym 400 ie 33 CV, 24,5 kw 1cil. LX40A1-6 Bastidores: --- 2011-2016
SYM Maxsym 400 ie ABS 33 CV, 24,5 kw 1cil. LX40A2-6 Bastidores: --- 2011-2017
