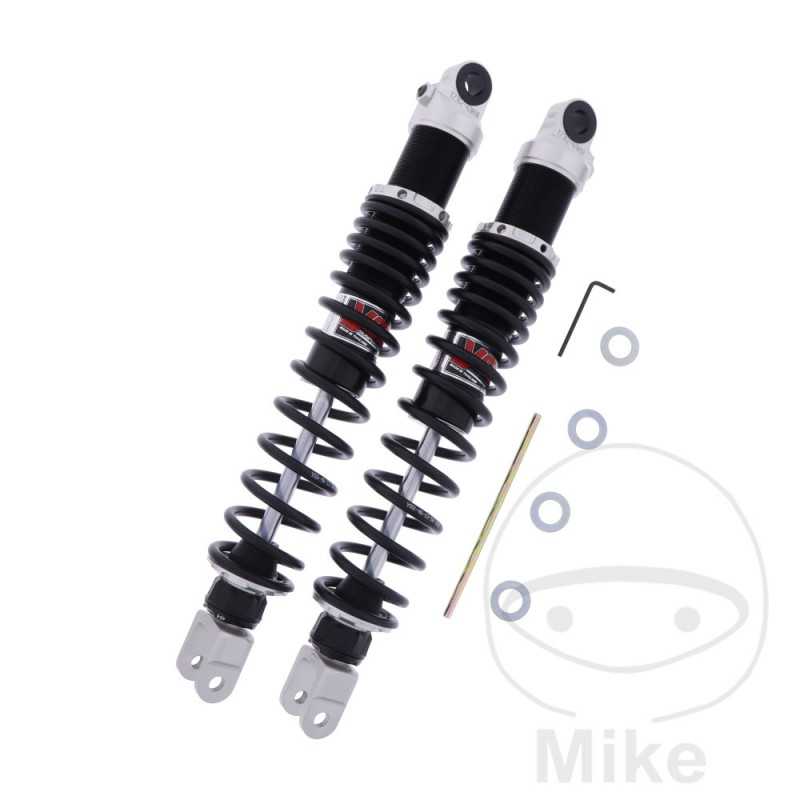

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.67

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 420MM
LOWER FIXING: FORK
FORK WIDTH: 26 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 260 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 3 Bastidores: JH2 PF01B-3K010001-JH2 PF01B-3K099999 2003
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 4 Bastidores: JH2 PF01B-4K020001-JH2 PF01B-4K099999 2004
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 5 Bastidores: JH2 PF01B-5K030001-- 2005
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 6 Bastidores: JH2 PF01B-6K100001-JH2 PF01B-6K199999 2006
Honda FJS 600 A Silver Wing ABS 52 CV, 38 kw 2cil. PF01B 7 Bastidores: JH2 PF01B-7K200001-- 2007-2010
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 3 Bastidores: JH2 PF01A-3K050001-JH2 PF01A-3K099999 2003
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 4 Bastidores: JH2 PF01A-4K060001-JH2 PF01A-4K099999 2004
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 5 Bastidores: JH2 PF01A-5K070001-- 2005
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 6 Bastidores: JH2 PF01A-6K100001-JH2 PF01A-6K199999 2006
Honda FJS 600 Silver Wing 50 CV, 37 kw 2cil. PF01A 1 Bastidores: JH2 PF01A-1K000001-JH2 PF01A-1K099999 2001
Honda FJS 600 Silver Wing 50 CV, 37 kw 2cil. PF01A 2 Bastidores: JH2 PF01A-2K030001-JH2 PF01A-2K099999 2002
