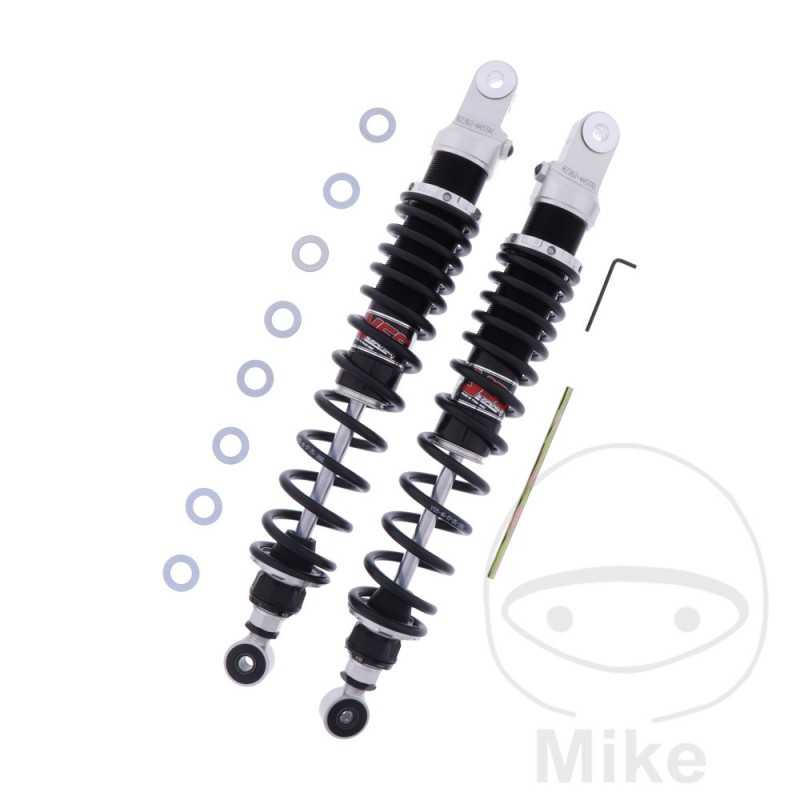

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.64

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
Length: 445mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 280 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XR 500 36,5 CV, 27 kw 1cil. PE01 A Bastidores: PE01-5100001-- 1980
Honda XR 500 36,5 CV, 27 kw 1cil. PE01 Z Bastidores: PE01-5000026-PE01-5009408 1979
