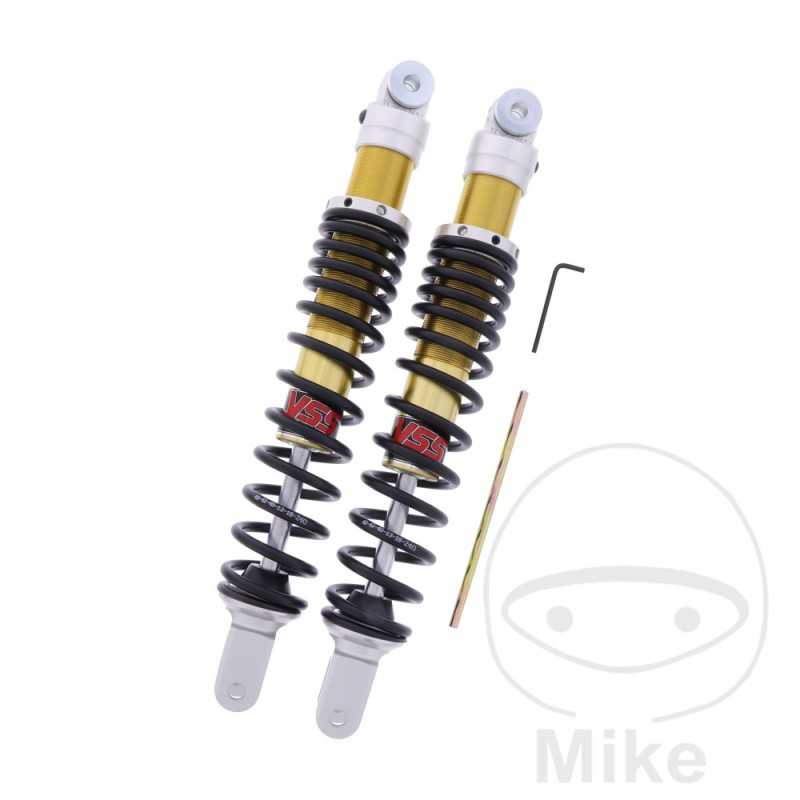

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.50

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length : 365mm
LOWER FIXING: FORK
FORK WIDTH: 30 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 240 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Beverly 350 ie ABS 30,3 CV, 22,2 kw 1cil. MA2200 Bastidores: ZAPMA2200 henceforth0001001-- 2020
Piaggio Beverly 350 ie ABS Euro4 30,3 CV, 22,2 kw 1cil. MA2200 Bastidores: ZAPMA2200 henceforth0001001-- 2021
Piaggio Beverly 350 ie Police ABS 30,3 CV, 22,2 kw 1cil. MA2200 Bastidores: ZAPMA2200 henceforth0001001-- 2019-2020
Piaggio Beverly 350 ie Sport Touring ABS 30,3 CV, 22,2 kw 1cil. MA2200 Bastidores: ZAPMA2200 henceforth0001001-- 2017-2019
Piaggio Beverly 350 S ie ABS 30,3 CV, 22,2 kw 1cil. MA2200 Bastidores: ZAPMA2200 henceforth0001001-- 2020
Piaggio Beverly 350 S ie ABS Euro4 30,3 CV, 22,2 kw 1cil. MA2200 Bastidores: ZAPMA2200 henceforth0001001-- 2021
