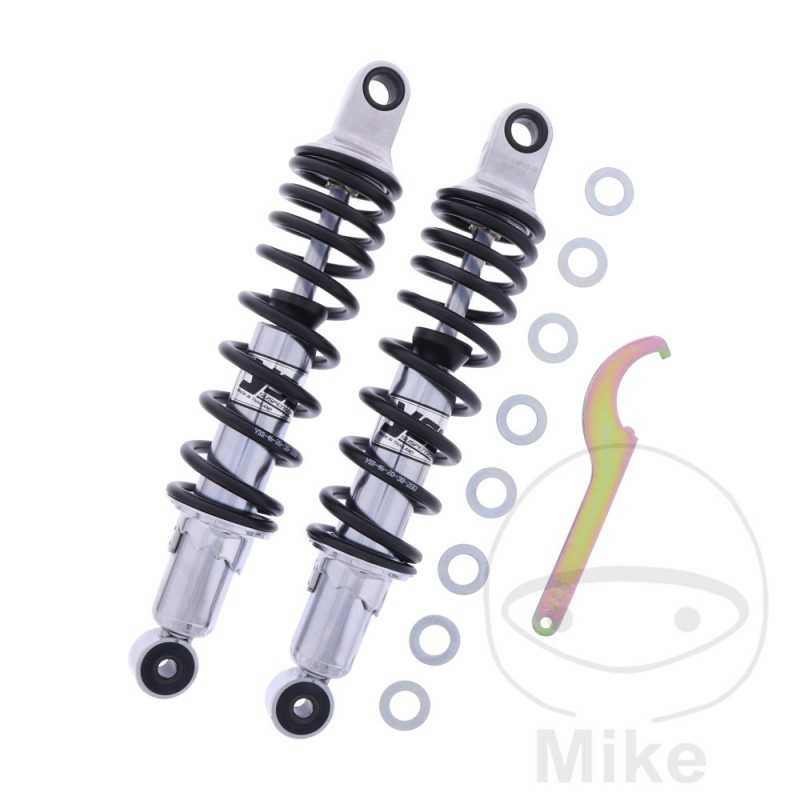

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.20.38

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VF 750 C Magna 86 CV, 63 kw 4cil. RC09 C Bastidores: RC09-2000026-RC09-2002770 1982
Honda VF 750 C Magna 86 CV, 63 kw 4cil. RC09 D Bastidores: RC09-2100009-RC09-2102163 1983
Honda VF 750 C Magna 86 CV, 63 kw 4cil. RC09 E Bastidores: RC09-2200182-RC09-2299999 1984
