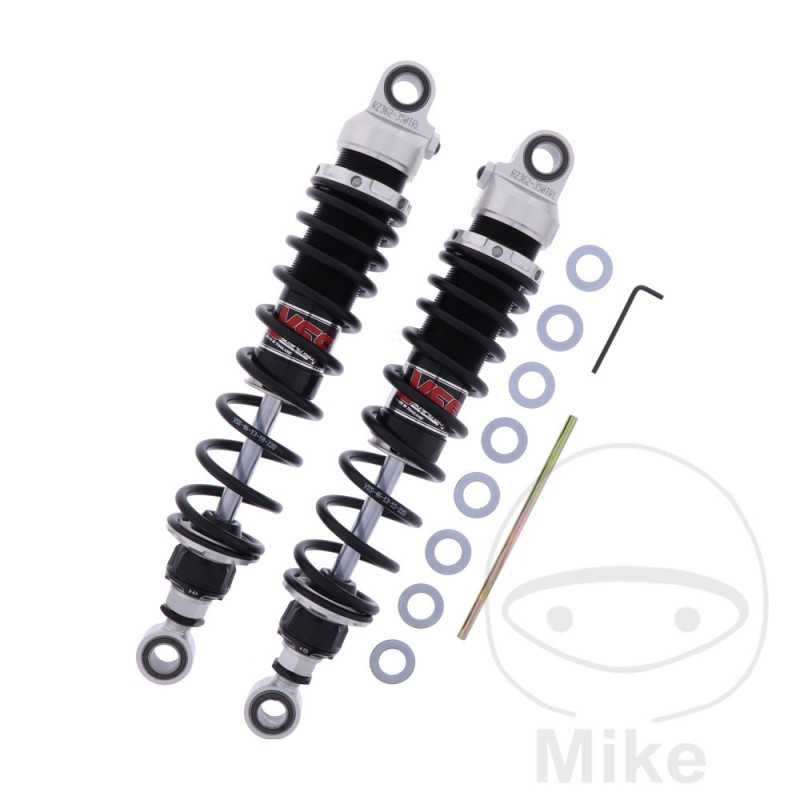

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.19.88

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC02 Bastidores: 1 --1 - 2017-2018
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC03R Bastidores: 1 --1 - 2019-2020
Triumph Street Scrambler 900 EFI ABS 55 CV, 40,5 kw 2cil. DC01 Bastidores: 1 --1 - 2017-2018
Triumph Street Scrambler 900 EFI ABS 65 CV, 48 kw 2cil. DC03 Bastidores: 1 --1 - 2019-2020
