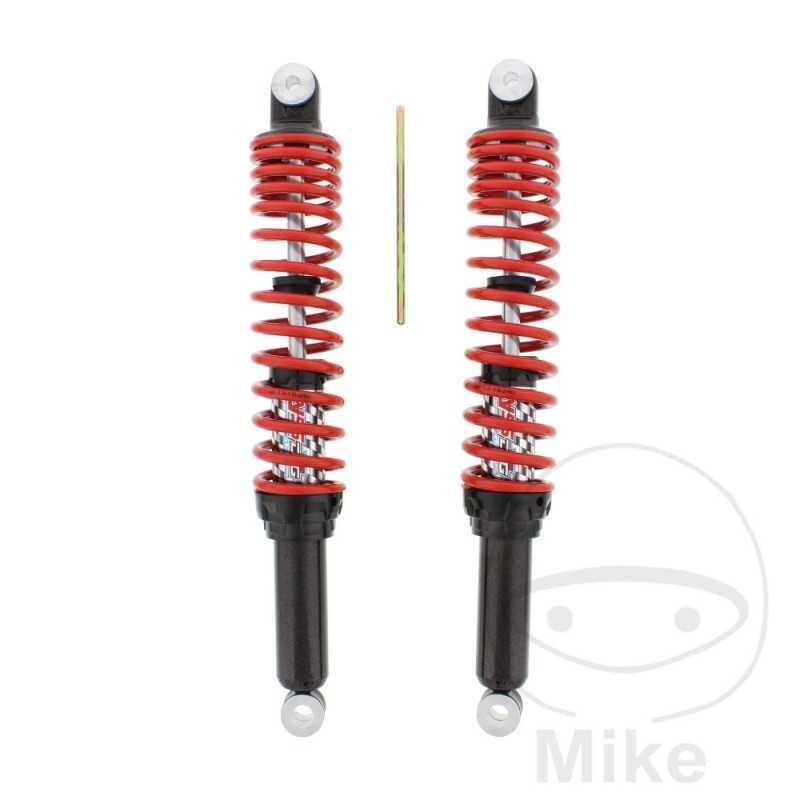

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.18.55

Gas pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 405MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio MP3 400 LT ie 32,6 CV, 24 kw 1cil. M64200 Bastidores: ZAPM64200 henceforth0001001-- 2009-2012
Piaggio MP3 400 LT ie Sport 32,6 CV, 24 kw 1cil. M64200 Bastidores: ZAPM64200 henceforth0001001-- 2011
Piaggio MP3 400 LT ie Touring 32,6 CV, 24 kw 1cil. M64200 Bastidores: ZAPM64200 henceforth0001001-- 2012-2013
