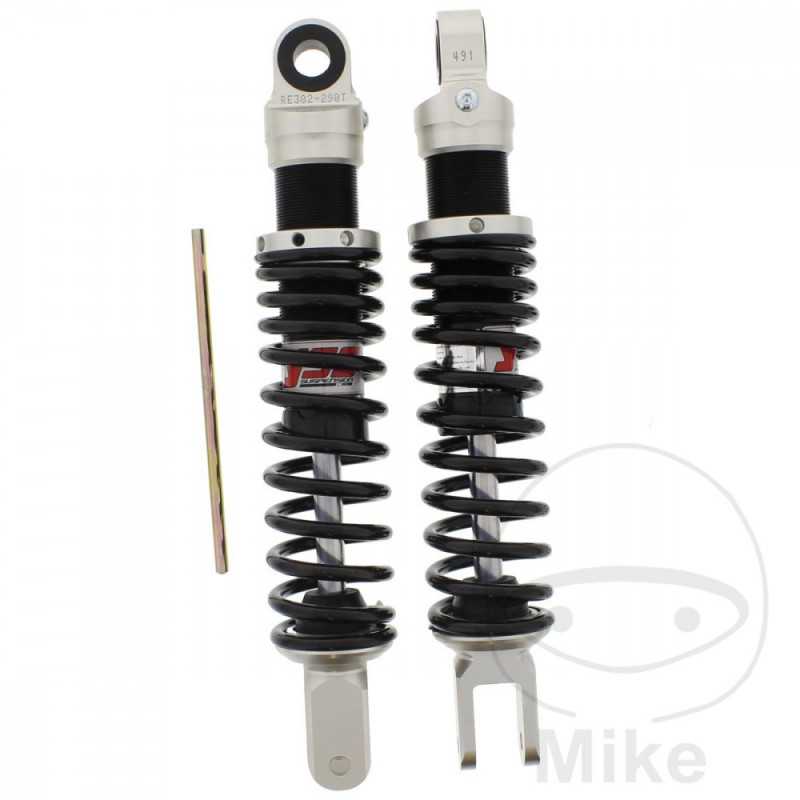

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.12.03

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 290MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 170 MM
SPRING DIAMETER: 38 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda PES 125 PS i 13,6 CV, 10 kw 1cil. JF17A 6 Bastidores: ZDC JF17A henceforth6F000001-ZDC JF17A henceforth6F099999 2006
Honda PES 125 PS i 13,6 CV, 10 kw 1cil. JF17A 7 Bastidores: ZDC JF17A henceforth7F020001-ZDC JF17A henceforth7F049999 2007
Honda PES 125 PS i 13,6 CV, 10 kw 1cil. JF17A 8 Bastidores: ZDC JF17A henceforth8F050001-- 2008
Honda PES 125 PS i 13,6 CV, 10 kw 1cil. JF17A 9 Bastidores: ZDC JF17A henceforth9F080001-ZDC JF17A henceforth9F089999 2009
Honda PES 125 PS i 13,6 CV, 10 kw 1cil. JF17A A Bastidores: ZDC JF17A-AF090001-- 2010-2013
Honda PES 150 PS i 15,8 CV, 11,6 kw 1cil. KF09A 6 Bastidores: ZDC KF09A henceforth6F000001-ZDC KF09A henceforth6F099999 2006
Honda PES 150 PS i 15,8 CV, 11,6 kw 1cil. KF09A 7 Bastidores: ZDC KF09A henceforth7F020001-ZDC KF09A henceforth7F049999 2007
Honda PES 150 PS i 15,8 CV, 11,6 kw 1cil. KF09A 8 Bastidores: ZDC KF09A henceforth8F050001-- 2008
Honda PES 150 PS i 15,8 CV, 11,6 kw 1cil. KF09A 9 Bastidores: ZDC KF09A henceforth9F080001-ZDC KF09A henceforth9F089999 2009
Honda PES 150 PS i 15,8 CV, 11,6 kw 1cil. KF09A A Bastidores: ZDC KF09A-AF090001-- 2010
