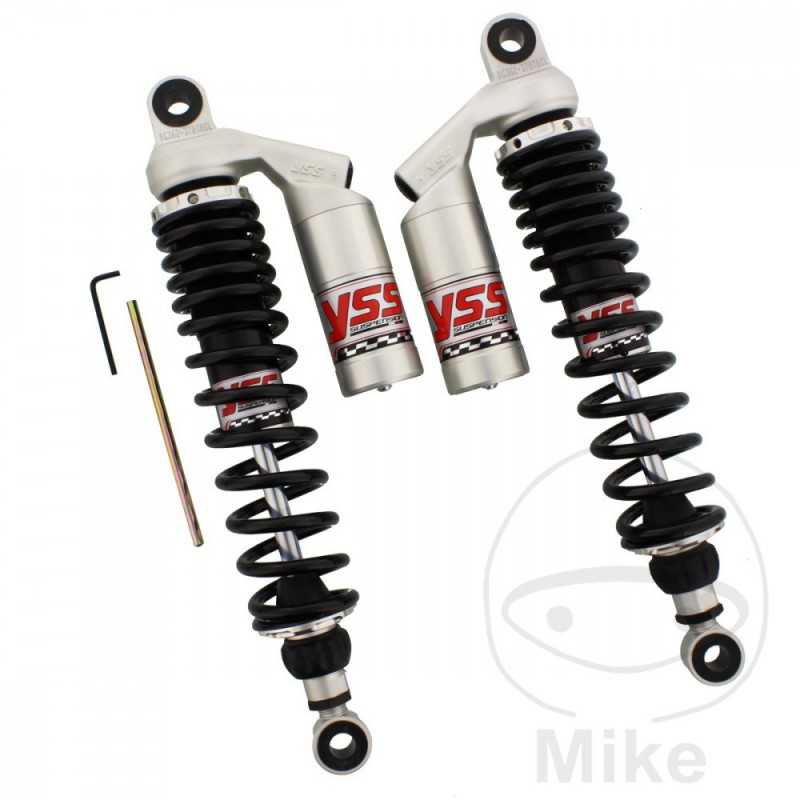

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.10.57

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) strut.

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 370mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi NTX 350 27 CV, 20 kw 2cil. LA Bastidores: LA 11111-- 1987-1992
Moto Guzzi NTX 650 49 CV, 36 kw 2cil. LB Bastidores: LB 11111-LB 12870 1986-1995
Moto Guzzi NTX 750 61 CV, 45 kw 2cil. LX Bastidores: LX 11111-LX 11470 1986-1989
Moto Guzzi NTX 750 61 CV. 45 kw 2cil. LX Bastidores: LX 11111-LX 11470 1990-1993
