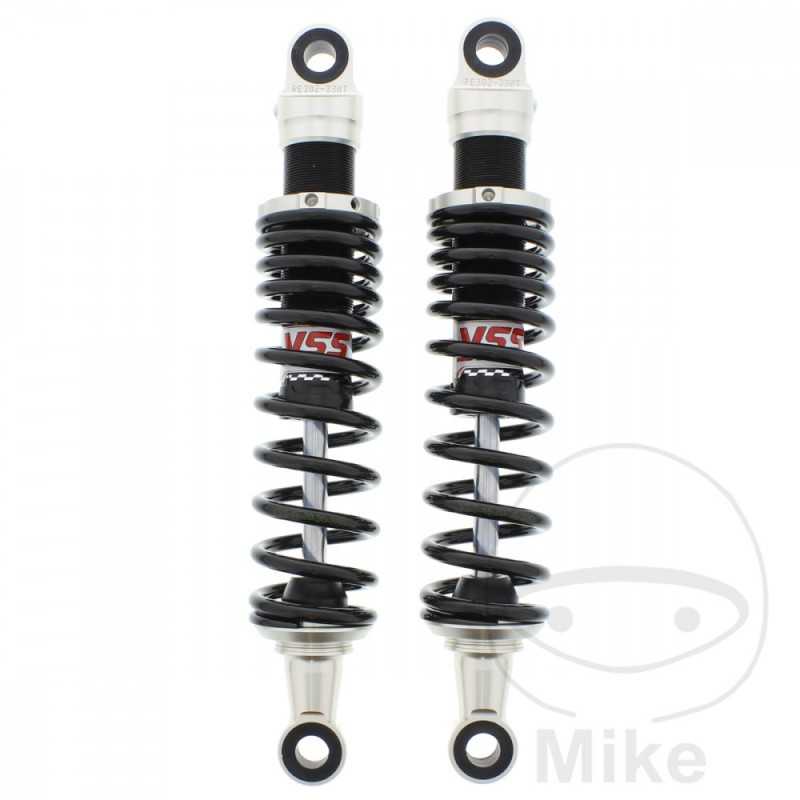

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.90

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Mille 1000 S2 83 CV, 61 kw 2cil. 1000S2 Bastidores: --- 1984-1985
Ducati S2 900 65 CV, 48 kw 2cil. - Bastidores: --- 1983-1984
Ducati SD 900 Darmah 68 CV, 50 kw 2cil. 900SD Bastidores: --- 1977-1984
Suzuki GS 850 G 80 CV, 59 kw 4cil. GS72A E Bastidores: GS72A-100001-GS72A-100151 1984
Suzuki GS 850 G 80 CV, 59 kw 4cil. GS72A F Bastidores: GS72A-100152-GS72A-100271 1985
Suzuki GS 850 G 80 CV, 59 kw 4cil. GS72A G Bastidores: GS72A-100272-- 1986
Suzuki GS 850 GL 80 CV, 59 kw 4cil. GS850 T Bastidores: GS850-700001-GS850-708562 1980
Suzuki GS 850 GL 80 CV, 59 kw 4cil. GS850 X Bastidores: GS850-708563-- 1981
