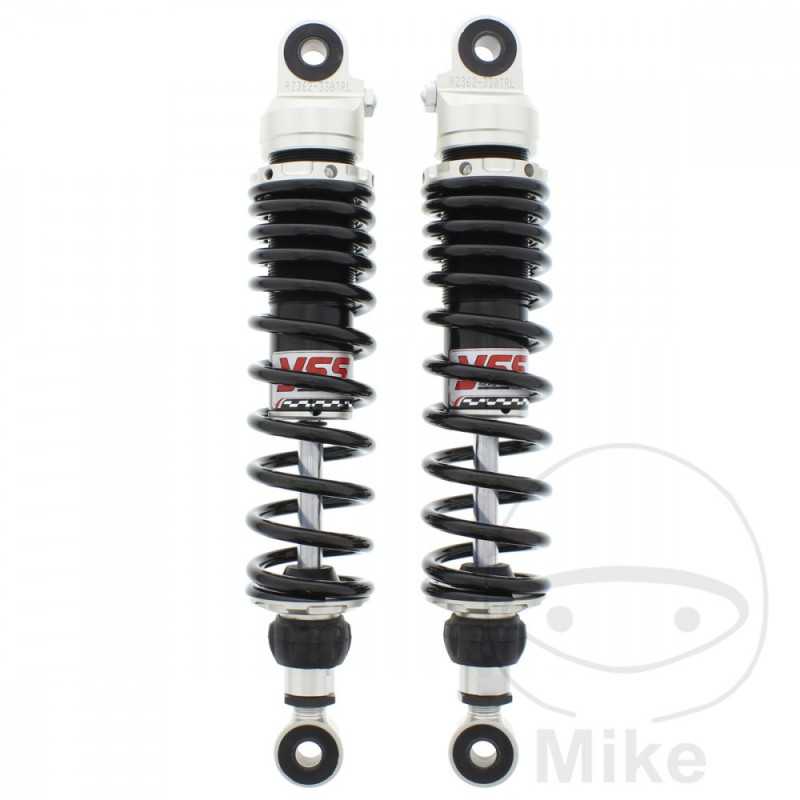

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.89

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Mille 1000 S2 83 CV, 61 kw 2cil. 1000S2 Bastidores: --- 1984-1985
Ducati S2 900 65 CV, 48 kw 2cil. - Bastidores: --- 1983-1984
Ducati SD 900 Darmah 68 CV, 50 kw 2cil. 900SD Bastidores: --- 1977-1984
