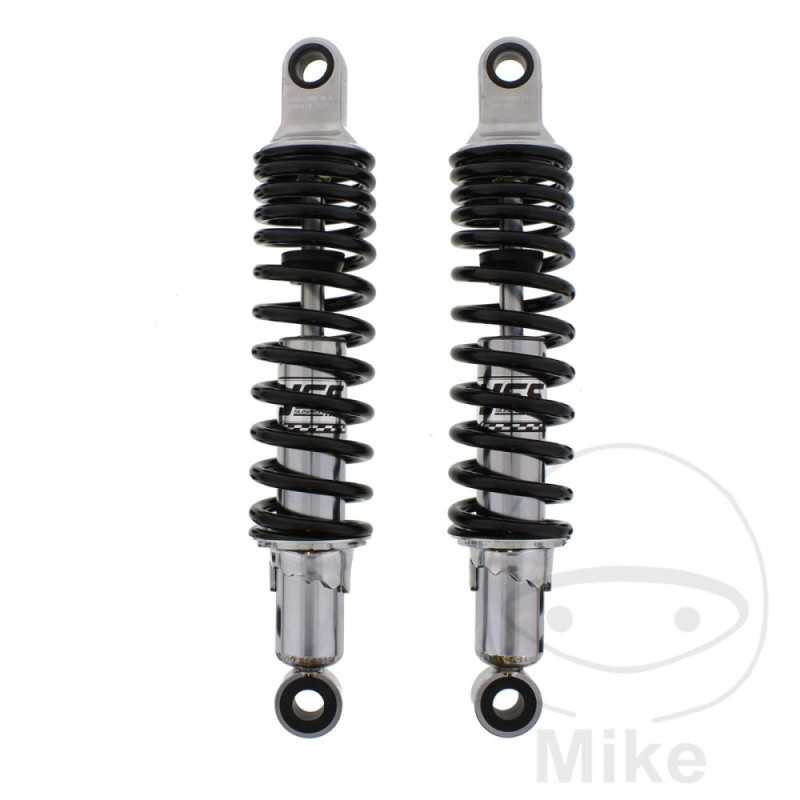

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.88

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FT 500 27 CV, 20 kw 1cil. PC07 C Bastidores: PC07-3000002-PC07-3099999 1982-1983
Honda FT 500 34 CV, 25 kw 1cil. PC07 C Bastidores: PC07-2000020-PC07-2099999 1982-1983
Honda GB 400 TT Clubman Tourist Trophy 34 CV, 25 kw 1cil. - M Bastidores: --- 1991-1993
Honda GB 500 Clubman 38/27 CV, 28/20 kw 1cil. PC16 K Bastidores: JH2 PC16-KK000001-JH2 PC16-KK099999 1989
Honda GB 500 Clubman 38/27 CV, 28/20 kw 1cil. PC16 L Bastidores: JH2 PC16-LK100001-JH2 PC16-LK199999 1990
