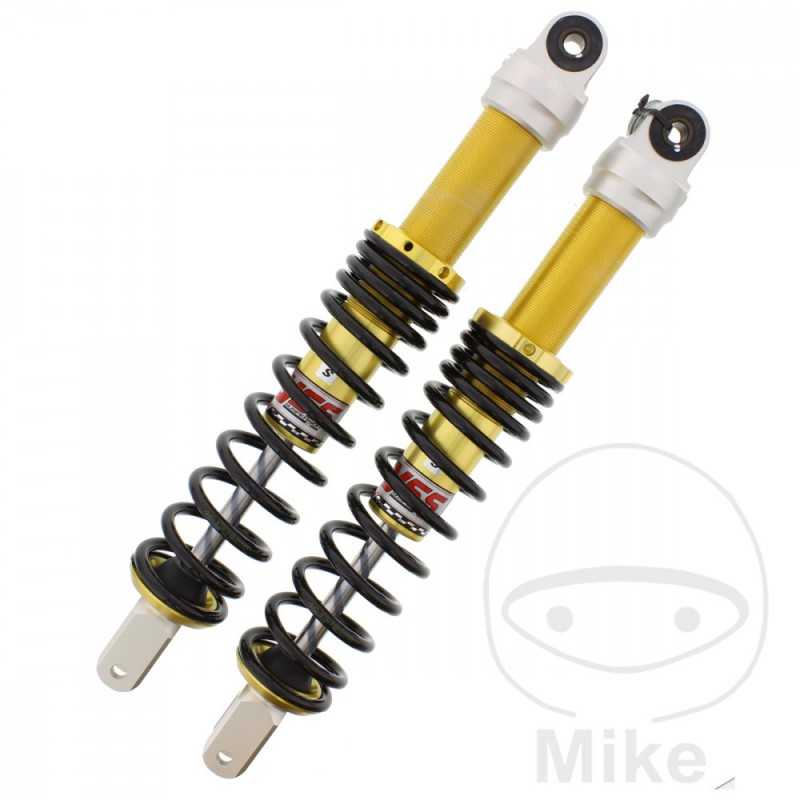

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.77

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 395MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FES 125 Pantheon CBS 13,6 CV, 10 kw 1cil. JF12A 3 Bastidores: ZDC JF12A henceforth3F000001-ZDC JF12A henceforth3F099999 2003
Honda FES 125 Pantheon CBS 13,6 CV, 10 kw 1cil. JF12A 4 Bastidores: ZDC JF12A henceforth4F020001-ZDC JF12A henceforth4F099999 2004
Honda FES 125 Pantheon CBS 13,6 CV, 10 kw 1cil. JF12A 5 Bastidores: ZDC JF12A henceforth5F030001-ZDC JF12A henceforth5F099999 2005-2007
