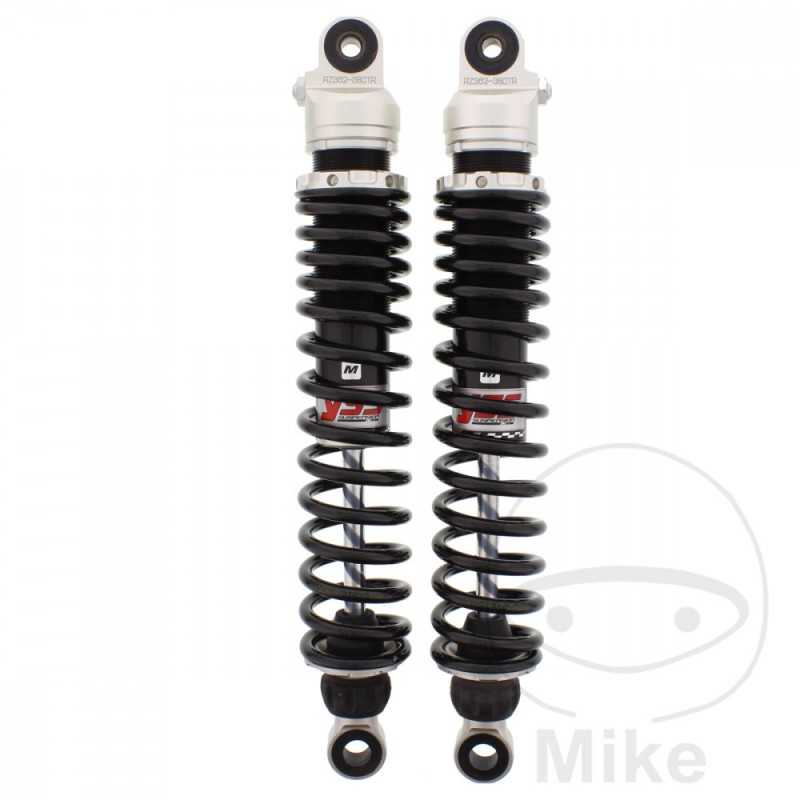

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.56

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 380mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 260 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 500 33 CV, 24 kw 2cil. PC32C 2 Bastidores: ZDC PC32C henceforth2F230001-- 2002-2003
Honda CB 500 33 CV, 24 kw 2cil. PC32C W Bastidores: ZDC PC32C henceforthWF200001-ZDC PC32C henceforthWF206240 1998
Honda CB 500 33 CV, 24 kw 2cil. PC32C X Bastidores: ZDC PC32C henceforthXF206241-- 1999
Honda CB 500 33 CV, 24 kw 2cil. PC32C Y Bastidores: ZDC PC32C henceforthYF220001-- 2000-2001
Honda CB 500 34 CV, 25 kw 2cil. PC32C T Bastidores: ZDC PC32C henceforthTF000001-- 1996
Honda CB 500 34 CV, 25 kw 2cil. PC32C V Bastidores: ZDC PC32C henceforthVF100001-- 1997
Honda CB 500 49 CV, 36 kw 2cil. PC32B 2 Bastidores: ZDC PC32B henceforth2F230001-- 2002-2003
Honda CB 500 49 CV, 36 kw 2cil. PC32B W Bastidores: ZDC PC32B henceforthWF200001-ZDC PC32B henceforthWF206240 1998
Honda CB 500 49 CV, 36 kw 2cil. PC32B X Bastidores: ZDC PC32B henceforthXF206241-- 1999
Honda CB 500 49 CV, 36 kw 2cil. PC32B Y Bastidores: ZDC PC32B henceforthYF220001-- 2000-2001
Honda CB 500 50 CV, 37 kw 2cil. PC32B T Bastidores: ZDC PC32B henceforthTF000001-- 1996
Honda CB 500 50 CV, 37 kw 2cil. PC32B V Bastidores: ZDC PC32B henceforthVF100001-- 1997
Honda CB 500 57 CV, 42 kw 2cil. PC32A 2 Bastidores: ZDC PC32A henceforth2F230001-- 2002-2003
Honda CB 500 57 CV, 42 kw 2cil. PC32A W Bastidores: ZDC PC32A henceforthWF200001-- 1998
Honda CB 500 57 CV, 42 kw 2cil. PC32A X Bastidores: ZDC PC32A henceforthXF206241-- 1999
Honda CB 500 57 CV, 42 kw 2cil. PC32A Y Bastidores: ZDC PC32A henceforthYF220001-- 2000-2001
Honda CB 500 58 CV, 43 kw 2cil. PC32A T Bastidores: ZDC PC32A henceforthTF000001-- 1996
Honda CB 500 58 CV, 43 kw 2cil. PC32A V Bastidores: ZDC PC32A henceforthVF100001-- 1997
