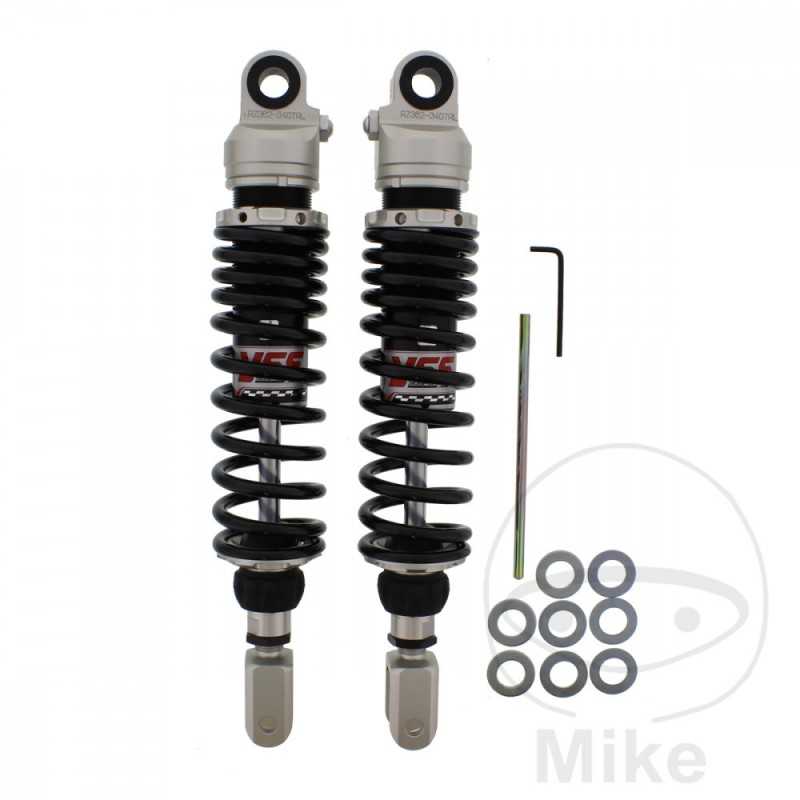

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.53

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 340MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 A Bastidores: RC04-2116243-RC04-2125120 1980
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 B Bastidores: RC04-2200018-RC04-2213525 1981
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 C Bastidores: RC04-2300008-RC04-2399999 1982
