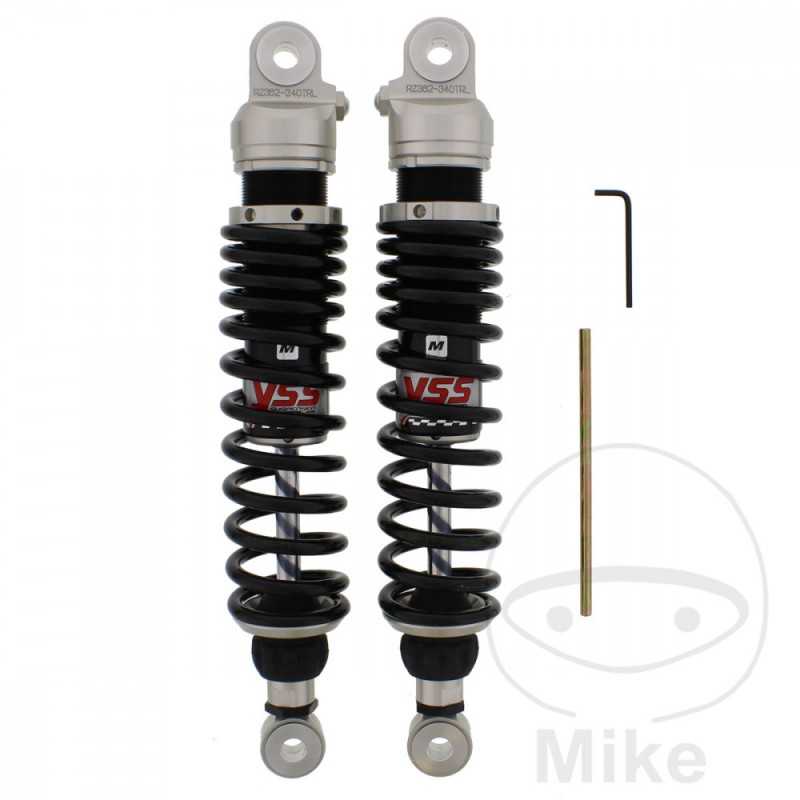

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.51

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi California 1100 34/50/75 CV, 25/37/55 kw 2cil. KC Bastidores: KC 11111-KC 14214 1994-1996
Moto Guzzi California 1100 ie 34 CV, 25 kw 2cil. KD Bastidores: --- 1996-2000
Moto Guzzi California 1100 ie 50 CV, 37 kw 2cil. KD Bastidores: --- 1996-2000
Moto Guzzi California 1100 ie 75 CV, 55 kw 2cil. KD Bastidores: --- 1996-2000
Moto Guzzi California 1100 ie 75 Aniversario 34 CV, 25 kw 2cil. KD Bastidores: --115426 1998-2000
Moto Guzzi California 1100 ie 75 Aniversario 34 CV, 25 kw 2cil. KD Bastidores: 115427-- 1998-2000
Moto Guzzi California 1100 ie 75 Aniversario 50 CV, 37 kw 2cil. KD Bastidores: --115426 1998-2000
Moto Guzzi California 1100 ie 75 Aniversario 50 CV, 37 kw 2cil. KD Bastidores: 115427-- 1998-2000
Moto Guzzi California 1100 ie 75 Aniversario 75 CV, 55 kw 2cil. KD Bastidores: --115426 1998-2000
Moto Guzzi California 1100 ie 75 Aniversario 75 CV, 55 kw 2cil. KD Bastidores: 115427-- 1998-2000
