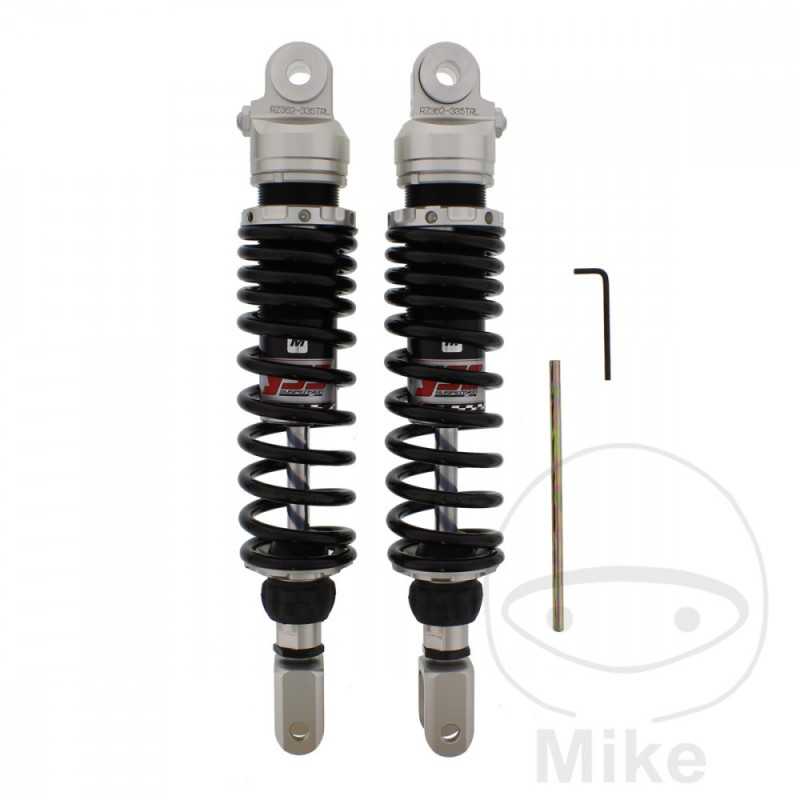

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.50

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 22 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 750 E llanta de fundición 80 CV, 59 kw 4cil. GS75X T Bastidores: GS75X-500001-GS75X-51697 1980
Suzuki GSX 750 E llanta de fundición 80 CV, 59 kw 4cil. GS75X X Bastidores: GS75X-516798-- 1981
Suzuki GSX 750 E llanta de fundición 80 CV, 59 kw 4cil. GS75X Z Bastidores: GS75X-523921-- 1982-1983
Suzuki GSX 750 S Katana 82 CV, 60 kw 4cil. GR71A Z Bastidores: GR71A-100001-- 1982-1984
