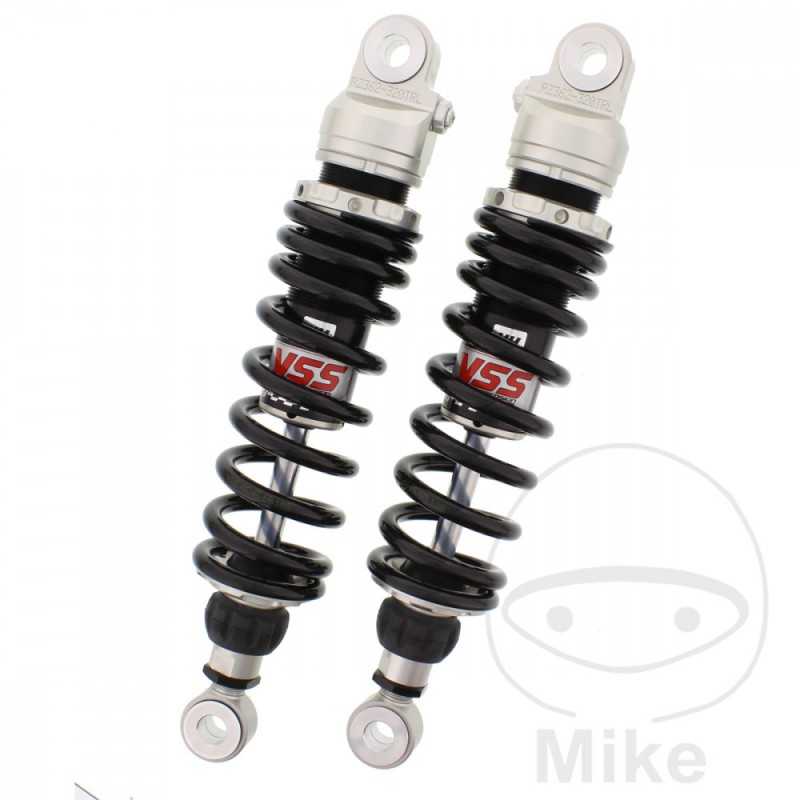

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.47

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A 1 Bastidores: 1HF SC34A-1A400001-- 2001
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A 2 Bastidores: 1HF SC34A-2A500001-- 2002-2003
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A V Bastidores: 1HF SC34A-VA000001-- 1997
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A W Bastidores: 1HF SC34A-WA100001-- 1998
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A X Bastidores: 1HF SC34A-XA200001-- 1999
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A Y Bastidores: 1HF SC34A-YA300001-- 2000
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B 1 Bastidores: 1HF SC34B-1A400001-- 2001
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B 2 Bastidores: 1HF SC34B-2A500001-- 2002-2003
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B V Bastidores: 1HF SC34B-VA000001-- 1997
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B W Bastidores: 1HF SC34B-WA100001-- 1998
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B X Bastidores: 1HF SC34B-XA200001-- 1999
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B Y Bastidores: 1HF SC34B-YA300001-- 2000
