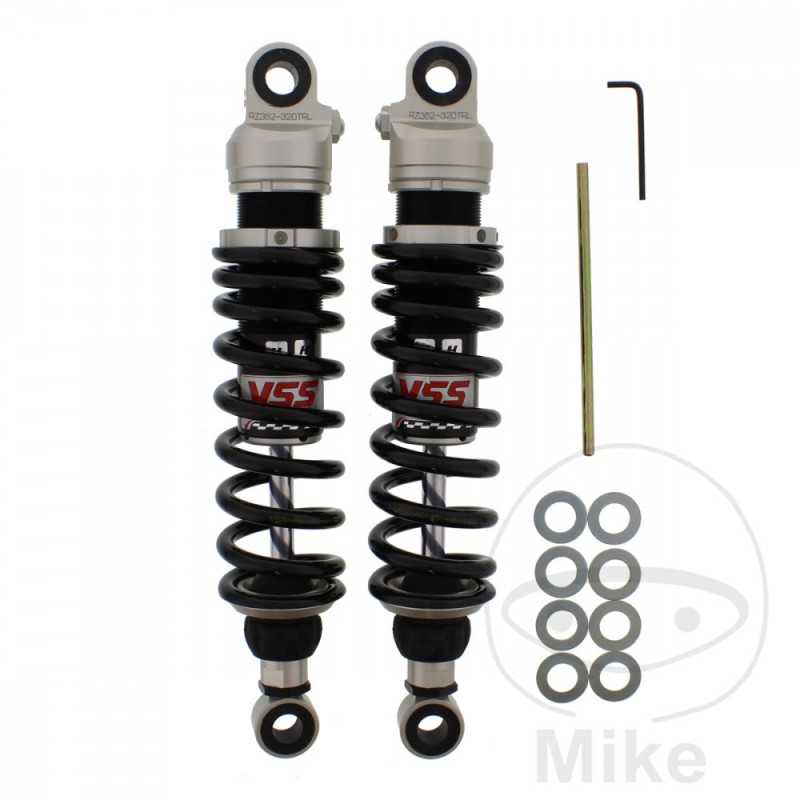

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.46

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Rocket 2300 III 140 CV, 103 kw 3cil. C23XB Bastidores: 1 --1 - 2004-2005
Triumph Rocket 2300 III 140/98 CV, 103/72 kw 3cil. C23XB Bastidores: 1 --1 - 2006-2007
Triumph Rocket 2300 III 140/98 CV, 103/72 kw 3cil. C23XB Bastidores: SMTTLC1035 --SMTTLC1035 - 2008-2009
Triumph Rocket 2300 III 98 CV, 72 kw 3cil. C23XB Bastidores: 1 --1 - 2004-2005
Triumph Rocket 2300 III Classic 140/98 CV, 103/72 kw 3cil. C23XB Bastidores: 1 --1 - 2006-2007
Triumph Rocket 2300 III Classic 140/98 CV, 103/72 kw 3cil. C23XB Bastidores: SMTTLC6035 --SMTTLC6035 - 2007-2009
Triumph Rocket 2300 III Roadster ABS 148/98 CV, 109/72 kw 3cil. C23XB Bastidores: SMTTLC1235 --SMTTLC1235 - 2010-2012
