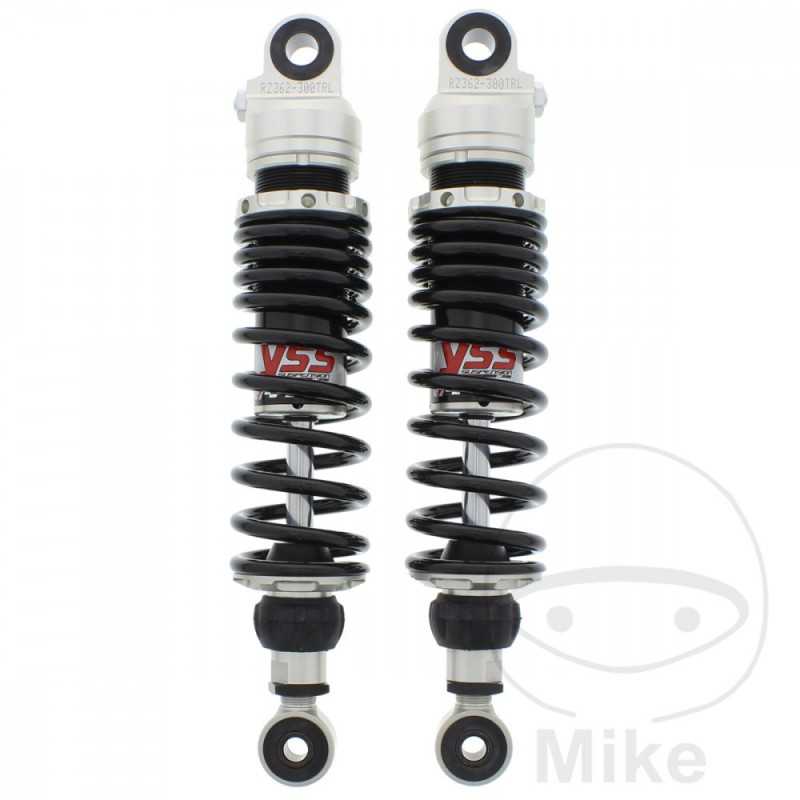

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.44

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 300 mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 140 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha SRX 600 1cil. 2TM 2TM Bastidores: 2TM henceforth00101-2TM henceforth01000 1987
Yamaha SRX 600 H 45 CV, 33 kw 1cil. 1XL 1XL Bastidores: 1XL henceforth00101-1XL henceforth05000 1986
Yamaha SRX 600 H 45 CV, 33 kw 1cil. 1XL 1XL Bastidores: 1XL henceforth05101-1XL henceforth12000 1987-1989
Yamaha SRX 600 N 27 CV, 20 kw 1cil. 1XM 1XM Bastidores: 1XM henceforth00101-1XM henceforth03000 1986
Yamaha SRX 600 N 27 CV, 20 kw 1cil. 1XM 1XM Bastidores: 1XM henceforth03101-1XM henceforth05000 1987-1989
