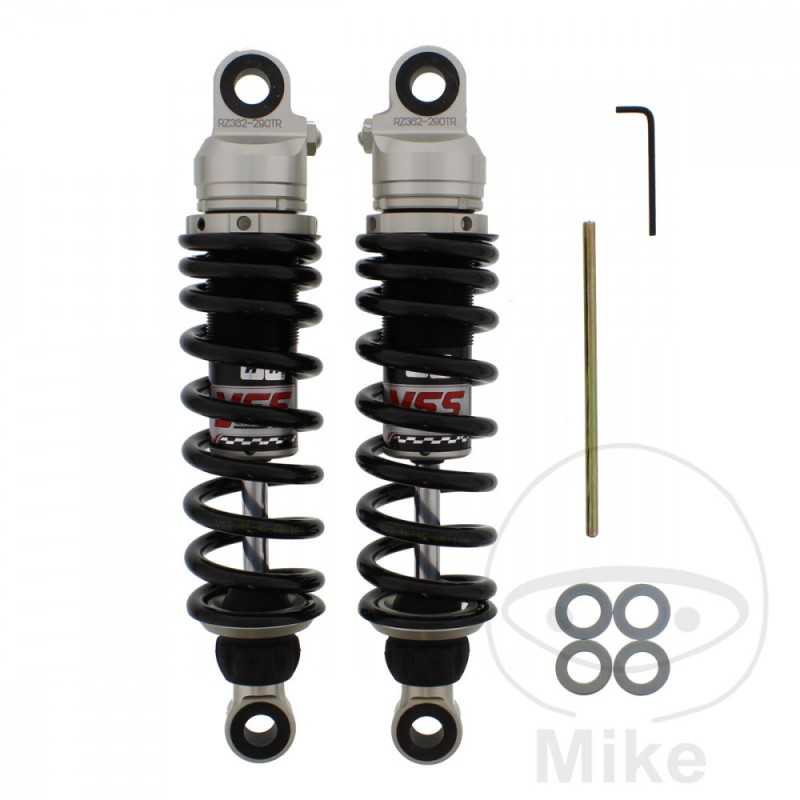

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.41

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 290MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 160 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VTX 1800 C 107/97 CV, 79/71 kw 2cil. SC46A 2 Bastidores: 1HF SC46A-2A000001-1HF SC46A-2A099999 2001-2002
Honda VTX 1800 C 107/97 CV, 79/71 kw 2cil. SC46A 3 Bastidores: 1HF SC46A-3A100001-1HF SC46A-3A199999 2003
Honda VTX 1800 C 107/97 CV, 79/71 kw 2cil. SC46A 4 Bastidores: 1HF SC46A-4A200001-1HF SC46A-4A299999 2004
Honda VTX 1800 C1 107/97 CV, 79/71 kw 2cil. SC46A 5 Bastidores: 1HF SC46A-5A300001-1HF SC46A-5A399999 2005-2006
