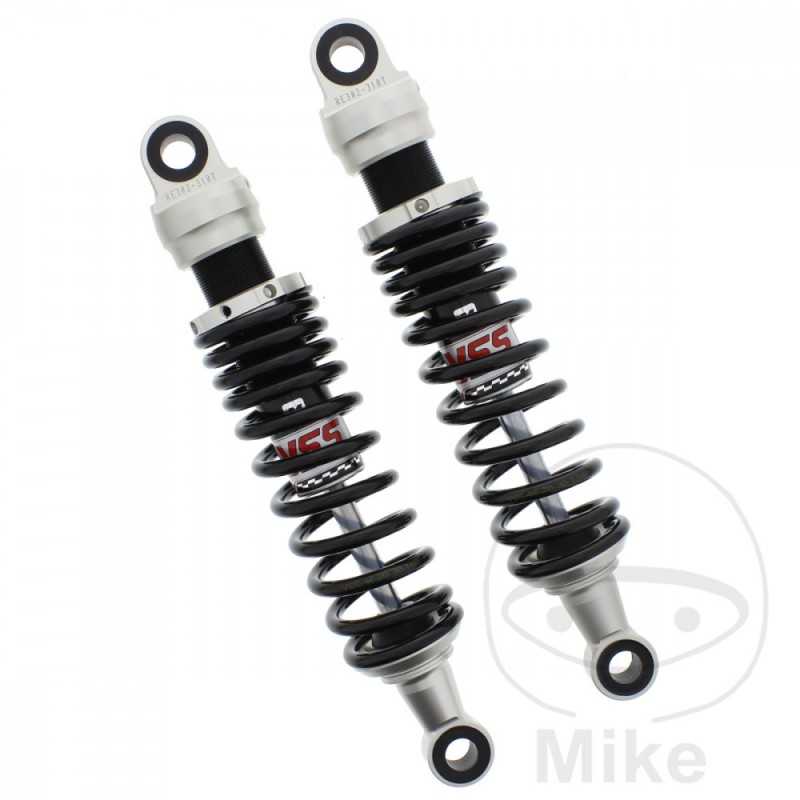

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.19

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson XL 1200 C Sportster Custom 34 CV, 25 kw 2cil. CT3 XL2 Bastidores: --- 2007-2009
Harley Davidson XL 1200 C Sportster Custom 67 CV, 49 kw 2cil. CGP XL2 Bastidores: --- 2004-2006
Harley Davidson XL 1200 C Sportster Custom 67 CV, 49 kw 2cil. CT3 XL2 Bastidores: --- 2007-2009
Harley Davidson XL 883 Sportster 34 CV, 25 kw 2cil. CAM XL2 Bastidores: --- 2004-2006
Harley Davidson XL 883 Sportster 34 CV, 25 kw 2cil. CN2 XL2 Bastidores: --- 2007-2009
Harley Davidson XL 883 Sportster 53 CV, 39 kw 2cil. CN2 XL2 Bastidores: --- 2007-2009
Harley Davidson XL 883 Sportster 54 CV, 40 kw 2cil. CAM XL2 Bastidores: --- 2004-2006
Harley Davidson XLH 1200 Sportster 46 CV, 34 kw 2cil. CAP XL/2 Bastidores: --- 1994
Harley Davidson XLH 1200 Sportster 49 CV, 36 kw 2cil. CAP XL/2 Bastidores: --- 1995
Harley Davidson XLH 1200 Sportster 52 CV, 38 kw 2cil. CAP XL/2 Bastidores: --- 1994
Harley Davidson XLH 1200 Sportster 58 CV, 43 kw 2cil. CAP XL/2 Bastidores: --- 1995
Harley Davidson XLH 883 Sportster 24 CV, 17,5 kw 2cil. CAM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster 27 CV, 20 kw 2cil. CAM XL/2 Bastidores: --- 1987
Harley Davidson XLH 883 Sportster 32 CV, 24 kw 2cil. CAM XL/2 Bastidores: --- 1995-1999
Harley Davidson XLH 883 Sportster 46 CV, 34 kw 2cil. CAM XL/2 Bastidores: --- 1987
Harley Davidson XLH 883 Sportster 46/27 CV, 34/20 kw 2cil. CAM XL/2 Bastidores: --- 1993
Harley Davidson XLH 883 Sportster 46/34 CV, 34/25 kw 2cil. CAM XL/2 Bastidores: --- 1994
Harley Davidson XLH 883 Sportster 48 CV, 35 kw 2cil. CAM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster 49 CV, 36 kw 2cil. CAM XL/2 Bastidores: --- 1995-1998
Harley Davidson XLH 883 Sportster 50 CV, 37 kw 2cil. CAM XL/2 Bastidores: --- 1999
Harley Davidson XLH 883 Sportster Deluxe 24 CV, 17,5 kw 2cil. CFM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster Deluxe 48 CV, 35 kw 2cil. CFM XL/2 Bastidores: --- 1988-1992
