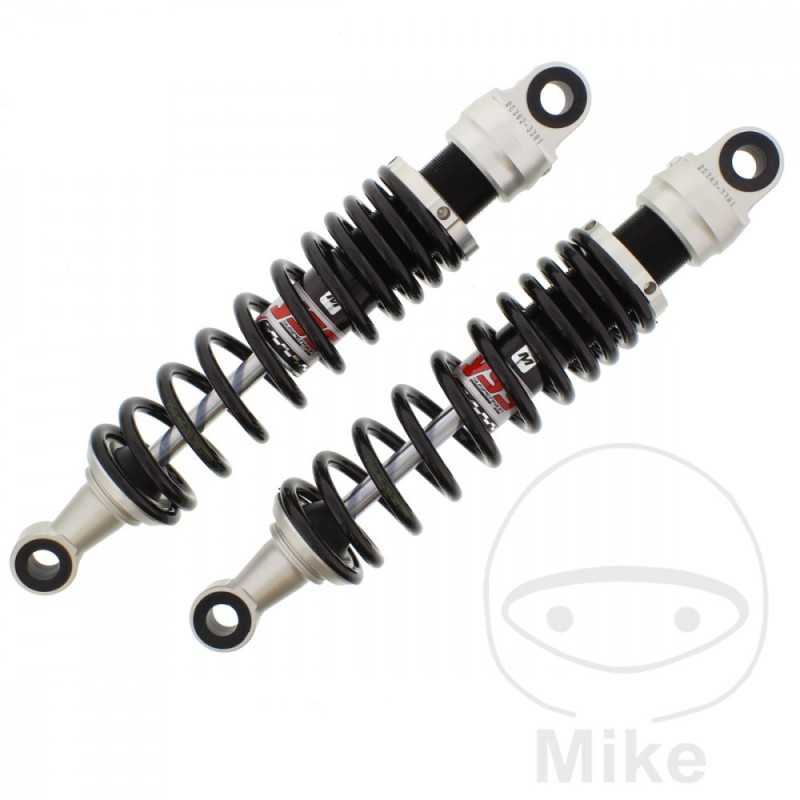

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.18

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1200 Inazuma 98 CV, 72 kw 4cil. A31111 X Bastidores: A31111 henceforth0100001-A31111 henceforth0102697 1999
Suzuki GSX 1200 Inazuma 98 CV, 72 kw 4cil. A31111 Y Bastidores: A31111 henceforth0102698-A31111 henceforth0104693 2000
